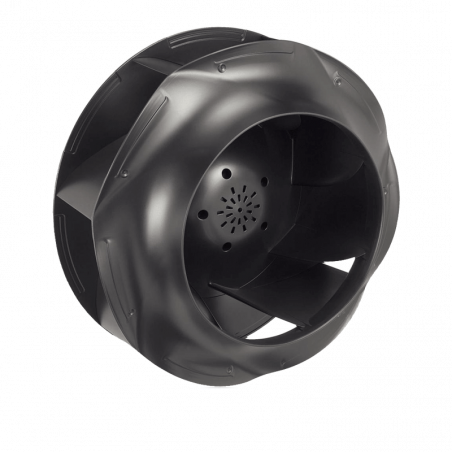

K3G250-RH13-05 Radial fan

Housing material tworzywo sztuczne PA
Protection rating IP54
Phase 1~
Nominal voltage 230
Frequency 50/60
Speed 2250
Power input 115
Current draw 1
Min. ambient temperature -25
Max. ambient temperature 60
Size 250 mm
Voltage range 200 .. 240
Direction of rotation Zgodnie z ruchem wskazówek zegara, patrząc w kierunku wirnika
Rotor material tworzywo sztuczne PA
Type of voltage AC
Motor protection Elektroniczna ochrona silnika
Motor size 55
Insulation class B
Protection class against moisture (F) / environment (H) H1
Motor bearing Łożysko kulkowe
Rotor surface Pasywowana grubowarstwowo
Number of blades 7
Max. permitted ambient temp. (transport/storage) 80 °C
Min. ambient temp. (transport/storage) - 40 °C
Installation position Każdy
Condensation drainage holes Brak, otwarty wirnik
Mode S1
with cable Zmienny
Protection class I (z podłączeniem przez klienta uziemienia ochronnego)
Compliance with standards EN 60335-1 / CE
Weight 1.4 kg
