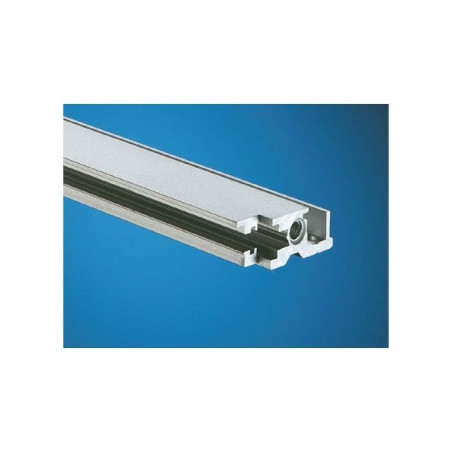

3684963 Rear horizontal rail, center (BP-M1), 40 km
  • 3684963 Rear horizontal rail, center (BP-M1), 40 km

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

3684963 Rear horizontal rail, center (BP-M1), 40 HP

  • 3684963
  • Height (U) 3 U
  • Width (HP) 21 HP
  • Packed after 1 część
When using 6 U PCBs or box-type plug-in units. Facility for the attachment of Z rails, insulating strips or conductive strips.
  • 84 tapped holes M2.5
  • M4 thread on end face
  • Straight-through core hole
  • Horizontal rail 192 HP for cutting to the required length
Material: Extruded aluminum section
Surface finish: Clear-chromated or anodized
