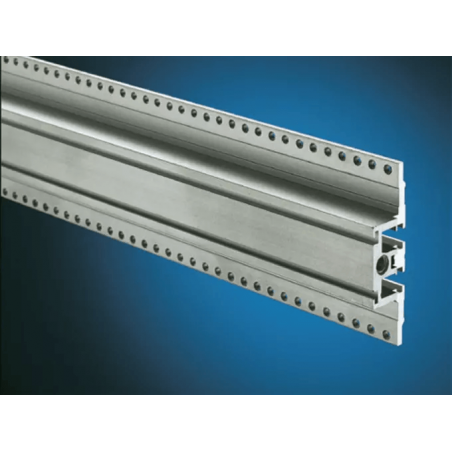

3687603 Rear horizontal rail, center with integral rail with (EST-M1), 858.5 mm
  • 3687603 Rear horizontal rail, center with integral rail with (EST-M1), 858.5 mm

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

3687603 Rear horizontal rail, center with integral rail with (EST-M1), 858.5 mm

  • 3687603
  • Version Front szyny poziomej z blatem 10 mm na uchwyty (V-Ext.1)
  • Height (U) 4 U (3+1)
  • Width (HP) 84 HP
  • Side panel depth 345 mm
  • Maximum PCB Depth 280 mm
  • Electronic connection płyta montażowa
  • Packed after 1 Zestaw
  • EMC tak
When using 6 U PCBs or box-type plug-in units. Integral Z rail for mounting connectors to IEC 60 603-2.
  • 84 tapped holes M2.5
  • M4 thread on end face
  • Straight-through core hole
Material: Extruded aluminum section Surface finish: Clear-chromated
