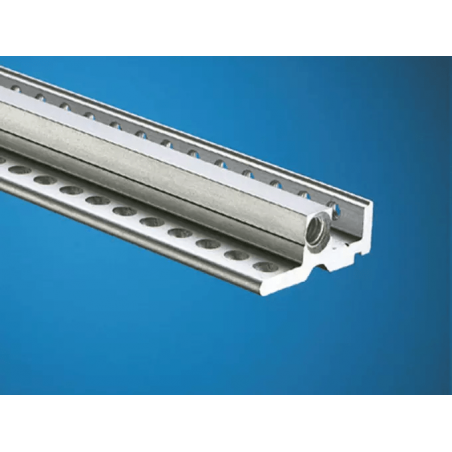

3685268 Rear Horizontal Rail (BP1), 84 HP, 2 Stück
  • 3685268 Rear Horizontal Rail (BP1), 84 HP, 2 Stück

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

3685268 Rear Horizontal Rail (BP1), 84 HP, 2 Stück

  • 3685268
  • Height (U) 3 U
  • Width (HP) 8 HP
  • Packed after 1 Zestaw
To accommodate guide rails and for the attachment of Z rails, insulating strips or conductive strips
  • Tapped holes M2.5 on a 1 HP pitch pattern
  • HP pitch pattern of holes for the precise installation of guide rails
  • M2.5 thread for the installation of Z rails or insulating / conductive strips
  • M4 thread on end face
  • Straight-through core hole
  • Horizontal rail 192 HP without machining on the end faces. Suitable for cutting to length
Material: Extruded aluminum section Surface finish: Clear-chromated or anodized
Less
