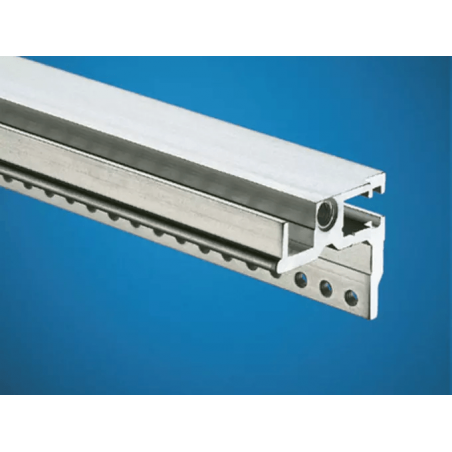

3686159 Rear horizontal rail, with integrated rail with (EST1), 84 hp
  • 3686159 Rear horizontal rail, with integrated rail with (EST1), 84 hp

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

3686159 Rear horizontal rail, with integrated rail with (EST1), 84 hp

  • 3686159
  • Height (U) 6 U
  • Width (HP) 42 HP
  • Side panel depth 225 mm
  • Maximum PCB Depth 160 mm
  • Electronic connection płyta montażowa
  • Mounting method Płyta montażowa
  • Packed after 1 Zestaw
  • EMC nie
To accommodate guide rails. Integral Z rail for mounting connectors to IEC 60 603-2.
  • HP pitch pattern of holes for the precise instal lation of guide rails
  • 84 tapped holes M2.5 for connector mounting
  • M4 thread on end face
  • Straight-through core hole
Material: Extruded aluminum section
Surface finish: Clear-chromated
