Manufacturer: HEITEC AG

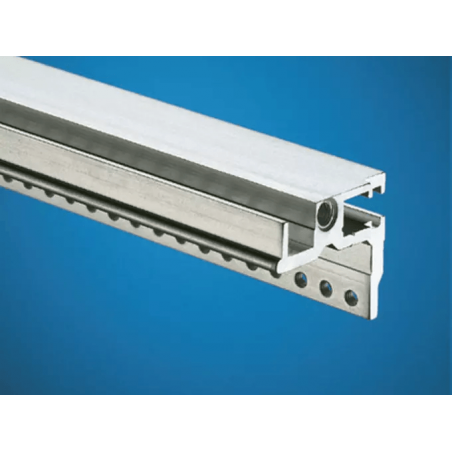

3686191 Rear horizontal rail, with integrated rail (est1), 42 hp

  • 3686191
  • Height (U) 6 U
  • Width (HP) 42 HP
  • Side panel depth 285 mm
  • Maximum PCB Depth 220 mm
  • Electronic connection płyta montażowa
  • Mounting method Płyta montażowa
  • Packed after 1 Zestaw
  • EMC nie
To accommodate guide rails. Integral Z rail for mounting connectors to IEC 60 603-2.
  • HP pitch pattern of holes for the precise instal lation of guide rails
  • 84 tapped holes M2.5 for connector mounting
  • M4 thread on end face
  • Straight-through core hole
Material: Extruded aluminum section
Surface finish: Clear-chromated
