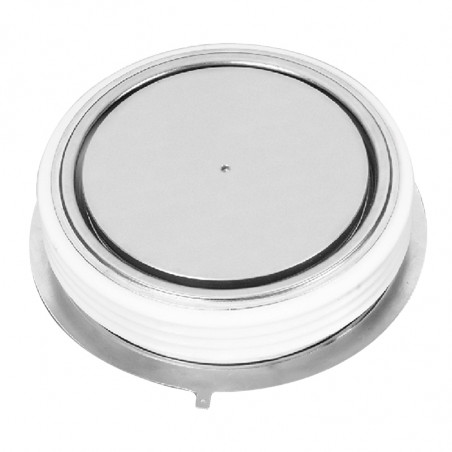

Rectifier diodes in tablet casing
  • Rectifier diodes in tablet casing

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: POWEREX

Rectifier diodes in tablet casing

Type

IF((AV)/TC
[A/°C]

URRM
[V]

IFSM
[A]

I2t
[A2s]

Rthjc
[°C/W]

Tj(max)
[°C]

Casing drawing number

RA20--48XX 4800 / 98 200 - 1200 73500 27,0 x 106 0,013 190 6
RBS8--70XX 7000 / 79 200 - 600 90000 40,5 x 106 0,0095 175 7
RDS8--10XX 10,000 / 90 200 - 1200 111000 5,13 x 107 0,0075 175 10
up to 2000V
R7S0--08XX 800 / 121 200 - 1600 12750 812813 0,035 175 2
R720-12XX 1200 / 106 200 - 1600 18750 1,7 x 106 0,055 175 - 200 4
R7S0--12XX 1200 / 86 200 - 1600 13500 911250 0,035 175 2
R7S0--16XX 1600 / 98 200 - 1600 21000 2,2 x 106 0,035 200 2
R9G0--22XX 2200 / 134 200 - 1600 45000 10,1 x 106 0,020 150 5
RCS8--80XX 8000 200 - 1400 TBD TBD TBD 175 9
up to 2600V
R620--30XXOO 300 / 142 200 - 2400 8250 340313 0,095 150 - 190 1
R620--40XXOO 400 / 128 200 - 2400 9000 405000 0,095 150 - 190 1
R620--50XXOO 500 / 114 200 - 2400 9750 475313 0,095 150 - 190 1
R7S0--08XX 800 / 121 1800 - 2400 12750 812813 0,035 175 3
R720--09XXOO 900 / 110 200 - 2600 12750 812813 0,055 150 - 200 4
R7S0--12XX 1200 / 86 1800 - 2400 13500 911250 0,035 175 3
R820--16XXOO 1600 / 82 200 - 2600 12950 6,99 x 105 0,035 175 4
R9G0--18XX 1800 / 110 200 - 2400 32250 5,2 x 106 0,02 175 5
R9S0-- 30XX 3000 / 115 600 - 1600 45000 10,1 x 106 0,0145 175 5
RA20--36XX 3600 / 100 200 - 2400 60000 18,0 x 106 0,013 175 6
RDS8--80XX 8000 / 90 200 - 2500 150000 3,57 x 107 0,007 175 10
up to 6500V
R720--06XXOO 600 / 136 200 - 4400 10500 551250 0,055 150 - 200 4
R820--07XX00 690 / 100 4400 - 5200 6938 2,41 x 105 0,035 150 4
R9G0--12XX 1200 / 102 200 - 5400 24000 2,8 x 106 0,020 150 5
R9G0--14XX 1360 / 80 6000 - 6500 15250 1,6 x 106 0,20 150 5
RA20--20XX 2000 / 99 200 - 5400 36000 6,4 x 106 0,013 150 6
RA20--25XX 2500 / 100 200 - 4200 42000 8,8 x 106 0,013 150 6
RBK8--40XX 4000 / 82 200 - 3200 75000 28,1 x 106 0,0115 160 8
RDK8--40XX 4000 / 68 6000 - 6500 55000 1,2 x 107 0,0075 150 11
RDS8--90XX 9000 1400 - 3000 TBD TBD 0,0075 175 10

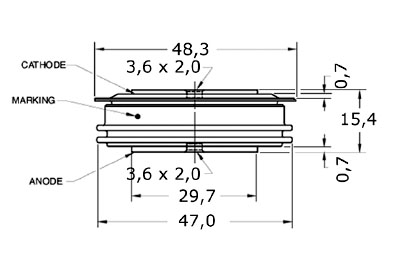

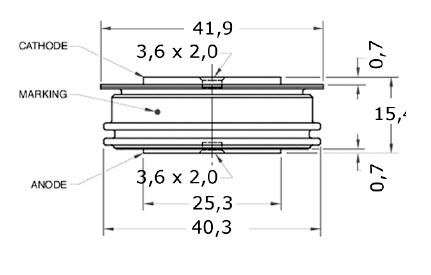

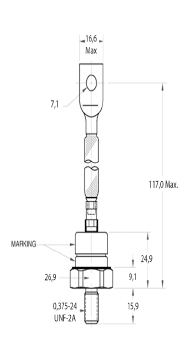

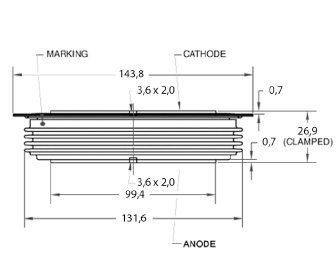

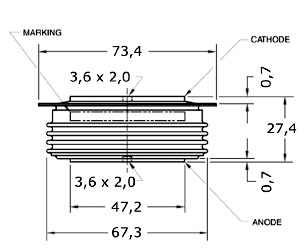

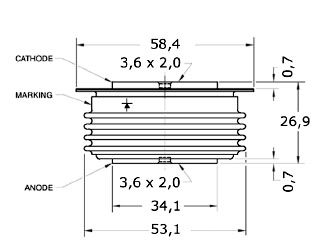

Drawing 1 dimensions [mm]Drawing 2 dimensions [mm]Drawing 3 dimensions [mm]
Drawing 4 dimensions [mm]Drawing 5 dimensions [mm]Drawing 6 dimensions [mm]
Drawing 7 dimensions [mm]Drawing 8 dimensions [mm]Drawing 9 dimensions [mm]
Drawing 10 dimensions [mm]Drawing 11 dimensions [mm]Drawing 12 dimensions [mm]
