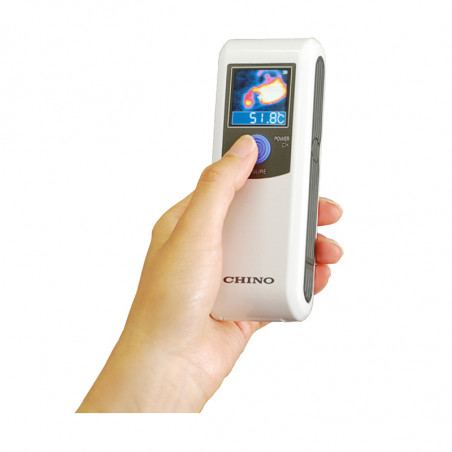

TP-S manual thermal imaging camera
  • TP-S manual thermal imaging camera

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Chino

TP-S manual thermal imaging camera

Specifications

Model TP-S
Temperature measuring range -10°C..+300°C
Detecting element Thermopile (2000 pixels)
Temperature resolution 0,5°C
Accuracy ratings ±2% of measured value or ±3oC whichever is greater
Frame rate 6Hz
Power supply AA battery x 2
Working temperature range 0°C..+50°C (Storage temperature -20 to 55OC)
Working humidity range 10..80% RH (no dew condensation)
Weight 180g (including batteries)
External dimensions W50 x H138 x D39(including lens)
Case material ABS resin ( antibacterial)

Measurement view angle

Applications
