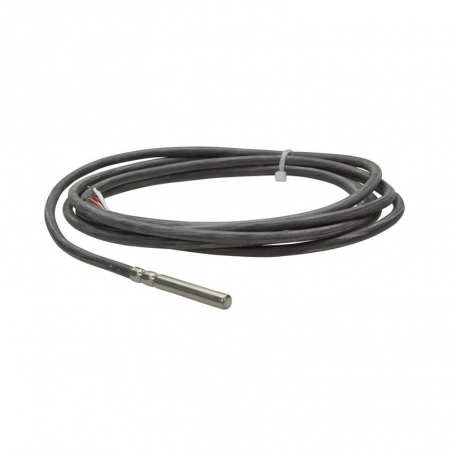

Resistant sensor for food products temperature measurement - ACT-25


SPECIFICATION:

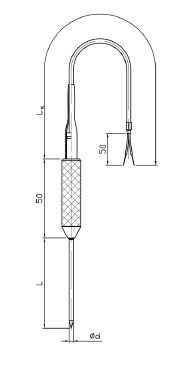

SENSOR TECHNICAL PARAMETERS
Measurement resistor Version Characteristic Measurement range Accuracy class Max measurement current Connection type
1xPt100
2xPt100		 normal shockproof according to PN-EN-60751 from -50°C
up to +250°C		 B 8 mA 2 cables
A 5 mA 3, 4
cables
-50°C+150°C 1/3 B DIN 2 mA

Shield
Diameter
d[mm]

material according to
WNr/ DIN

 material according to
ASTM /AISI

length
L[mm]
Ø3, Ø4, Ø5 , Ø6 1.4571 316 Ti arbitrary

Connection cable
Type Diameter Type Composition Operation temperature length LK
2 cables Ø2.9 L2GGD-2xO,22mm2 Fibre glass +400°C arbitrary
3, 4 cables Ø3.1 L4GGD-4xO,22mm2 Fibre glass
3 cables Ø4.3 L3TT-3xO,5mm2 teflon, teflon +260°C
2 cables Ø4.3 L2SDS-2xO,25mm2 silicon, silicon +180°C
3, 4 cables Ø4.4 L4TDS-4xO,25mm2 teflon, silicon
3 cables Ø3,8 L6TT-6xO,22mm2 teflon, teflon +260°C

Uwaga
Istnieje możliwość wykonania odmian nietypowych.


Oznaczenie

A. Rodzaj rezystora
 A

Pojedynczy Pt100
 1xPt100
B. Klasa dokładności
 B

B
 B

A
 A

1/3 B DIN
 1/3 B DIN
C.Średnica osłony d
 C

Ø4
 4

Ø5
 5

Ø6
 6
D. Długość osłony
 D

L
 podać w mm
F. Materiał osłony
 F

1.4571
 1.4571
H. Układ połączeń i typ przewodu
 H

2 cables  (L2GGD)
 2p-L2GGD

3 cables (L4GGD)
 3p-L4GGD

4 cables (L4GGD)
 4p-L4GGD

3 cables (L3TT)
 3p-L3TT

2 cables (L2SDS)
 2p-L2SDS

3 cables (L4TDS)
 3p-L4TDS

4 cables (L4TDS)
 4p-L4TDS

3 cables (L4TFDT)
 3p-L4TFDT

4 cables (L4TFDT)
 4p-L4TFDT
I. Cable length
 I

LK
 give in mm
J.Sensor type
 K

normal
 Z

shockproof
 W
