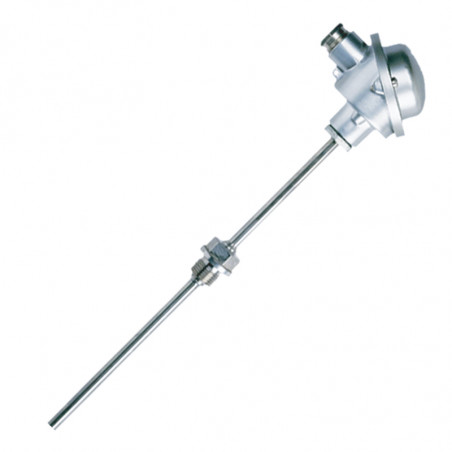

Resistant temperature sensor with replaceable measurement insert. Type tr 1
Resistant temperature sensor with replaceable measurement insert. Type tr 1

Photos are for informational purposes only. View product specification

please use latin characters

Resistant temperature sensor with replaceable measurement insert. Type tr 1

Resistant sensor type
Pt100 Pt500 Pt1000 Ni100 Ni1000
Wire diameter
3  4,5  6 8 mm
External sensor diameter
6 9   10   12   14   15 other for request
Sensor length
for request

Application
Temperature measurement in technological processes.

For resistant sensors - 2,3,4 cable execution.

Order information:
Type Insert type Connection type Class Length L
[mm]		 Insert diameter Ø [mm] Head Protective shield diameter [mm] Protective pipe material
TR 1

1 x Pt100
1 x Pt500
1 x Pt1000
1  x Ni100
2 x Pt100
2 x Pt500
2 x Pt1000
2 x Ni100

2 - 2 cable.
3 - 3 cable.
4 - 4 cable.

 A
B		 ........ mm 3
4,5
6
8		 A
DA
DAW
B
DAN
DANW
MA
GHP
A - D

6
9
10
12
14
15

 Metal 1.4571 1.4541

Example:
TRI - 1 x PtlOO - 3 - A - 600 - 6 - B - 9 - 1.4571
Description:
 Resistant sensor TR1, single insert Pt100, 3 cables, class A, length 600 mm, insert diameter 6 mm, head B, protective shield diameter 9 mm, pipe material 1.4571
