Scanner Probe RFS-R 50 30 MHz up to 3 GHz

  • RFS-R 50

Scanner Probe RFS-R 50 30 MHz up to 3 GHz

Description

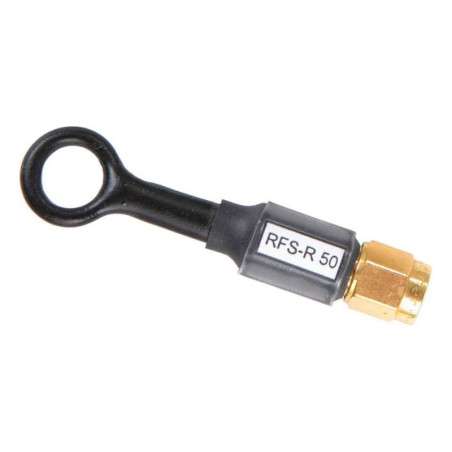

The RFS-R 50 H-field probe is designed for taking field measurements on assemblies, devices or cables at a distance of up to approx. 3 cm. The H-field probe can be used to identify larger components as sources of interference.

The RFS-R 50 is a passive near-field probe. It has a sheath current attenuation and is electrically shielded. It can be connected to a spectrum analyzer or an oscilloscope with a 50 Ω input. It does not have an internal terminating resistance.

Technical parameters

Frequency range 30 MHz ... 3 GHz
Probe head dimensions Ø 10 mm
Connector - output SMA, male, plug
Length ≈ 55 mm
