Swivel connectors with a through hole

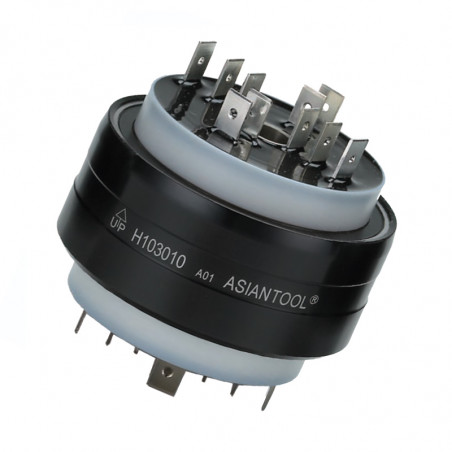

Electrical rotating connector through bore multi conductors(16.2mm)

Złącza obrotowe z otworem przelotowym

Usage

  • rotary tables,
  • vision systems, industrial cameras
  • packing machine
  • rollers
  • signal boards
  • fans
  • corn silos
  • rolling mill
  • turbines
  • lacquer devices
  • rotary stations
  • cable winder
  • printing machines
  • robots
  • rotary lamps
  • medical equipment
  • others

Advantages

  • Low signal disturbance
  • Very low costs
  • Very low resistance (<1mΩ)
  • Wire range of application in power supply and control signal carrying.

Specyfication

Model Through
– bore ψ
Conductors
Poles
Current
Amp.
[A]
Voltage
AC/V
[V]
Max. Freq
.[Mhz]
Max.
turn/min
Operation temperature
Max/Min
[oC]
Rotary torque.
[gm-cm]
Resistance

H23010

10.2mm 2 30 250 100 150 60/-30 700 > 25MΩ

H43010

10.2mm 4 30 250 100 100 60/-30 1000 > 25MΩ

H63010

10.2mm 6 30 250 100 60 60/-30 1500 > 25MΩ

H83010

10.2mm 8 30 250 100 40 60/-30 2000 > 25MΩ

H103010

10.2mm 10 30 250 100 20 60/-30 3000 > 25MΩ

H23016

16.2mm 2 30 250 100 100 60/-30 1000 >25MΩ

H43016

16.2mm 4 30 250 100 60 60/-30 1500 >25MΩ

H63016

16.2mm 6 30 250 100 40 60/-30 2000 >25MΩ

H83016

16.2mm 8 30 250 100 20 60/-30 3000 >25MΩ


Models, dimensions, accessories.

H23016 2 contact 30A/AC250V Through– bore 16,2mm

Złącza obrotowe z otworem przelotowym H23016

H43016 4 contact 30A/AC250V otówr przelotowy 16,2mm

Złącza obrotowe z otworem przelotowym H43016

H63016 2 contact 30A/AC250V Through– bore 16,2mm

Złącza obrotowe z otworem przelotowym H63016

H8016 8 contact 30A/AC250V Through– bore 16,2mm

Złącza obrotowe z otworem przelotowym H8016

H23010 2 contact 30A/AC250V Through– bore 10,2mm

Złącza obrotowe z otworem przelotowym H23010

H43010 4 contact 30A/AC250V Through– bore 10,2mm

Złącza obrotowe z otworem przelotowym H43010

H63010 6 contact 30A/AC250V Through– bore 10,2mm

Złącza obrotowe z otworem przelotowym H63010

H83010 8 contact 30A/AC250V Through– bore 10,2mm

Złącza obrotowe z otworem przelotowym H83010

H103010 10 contact 30A/AC250V Through– bore 10,2mm

Złącza obrotowe z otworem przelotowym H103010
