Manufacturer: Fenac

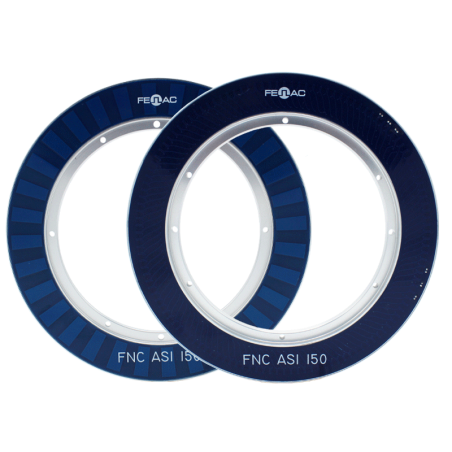

Fenac Inductive Contactless Encoders FNC ASI 150

Inductive encoders are precise measurement devices that use electromagnetic induction phenomena to determine angular or linear position. They are characterized by high resistance to contamination, vibrations, and variable environmental conditions, making them ideal for use in harsh industrial environments. Due to the absence of mechanical elements such as brushes, they offer long life and reliability. Inductive encoders are widely used in automation, robotics, and control systems.

Features:

  • Non contact inductive technology
  • High accuracy
  • For high reliability in extreme environments
  • Robust mechanical design
  • Thin design

Technical data:

Supply voltage 5V or 6-36V DC ±5%
Interface SSI or BISS
Protection Overvoltage protection
Short-circuit protection
Resolution (steps/turn) Up to 21 bit
Output frequency Up to 2MHz for SSI
Up to 10MHz for BISS
Code Binary
Output circuit SSI data linedriver RS485
Interference immunity DIN EN 61000-6-2
Emitted interference DIN EN 61000-6-4
Approval CE
Dimensions Outer Diameter: 150mm
Inner Diameter: 100mm
Mounting Type Clamping or Screw
Mounting Gap 1mm ±0.35
Materials Anodized Aluminium
Protection DIN EN 60529 IP 67
Operating temperaturę -40…+85°C
Weight Rotor: 30g
Stator: 100g
