Manufacturer: M-SYSTEM

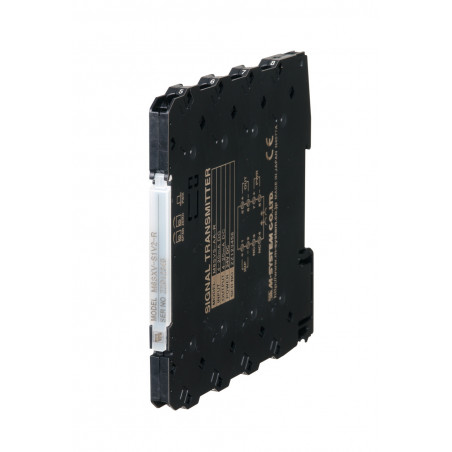

M6SXR, M6NXR, M6DXR - Signal converter with temperature Ultra Slim - Configurable

  • M6SXR, M6NXR, M6DXR

M6SXR, M6NXR, M6DXR is a signal converter with temperature input - ultra slim version - customizable.


M6SXR - Spring connection
M6NXR - M3 screw connection
M6DXR - Screw connection Euro


Features

  • 1-channel, 4-wire
  • Provides galvanic isolation of signals
  • 24V DC power < / li>
  • Customizable via PC
  • Slim case with 5.9-7.5mm width
  • LED power indicator
  • DIN rail mount
    • li>
  • 2000V AC insulation

Input types: RTD - JPt 100 (JIS'89), Pt 100 (JIS'89), Pt 100 (JIS'97, IEC), Pt 50Ω (JIS'81), Ni 508.4Ω, Pt 1000, Ni 100, Cu 10 @ 25 ° C
Types of outputs: current or voltage with different ranges
Possibility to make the range of inputs / outputs on special order.


Wire connection < / th> M3 screw terminals
Separation Input / Output / Power
Dielectric strength DC: 2000V AC
Range Selection PC Configurable
Double Output None
Power DC
Operating Temperature - 20 to + 55 ° C
Mounting On a DIN rail < / td>
Dimensions 5.9 (7.5) x 94 x 102 mm
