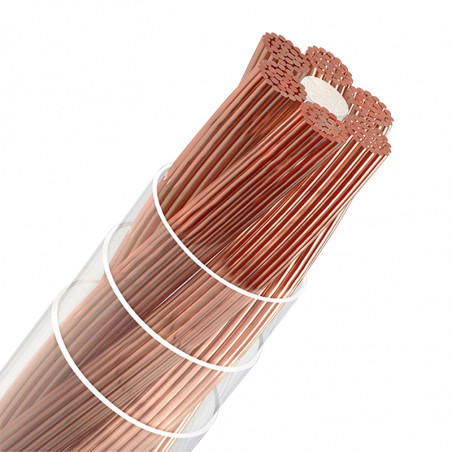

Rupalit Safety
  • Rupalit Safety

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: PACK Litz Wire

Rupalit Safety

Casing
- enamel wire copper (0,02 -1,6mm AWG 13-52),

Insulation material
- polyester foil150°C (Mylar®),
- foil P.E.N. (XR 20), 155°C,
- poliamidf foil 220°C (Kapton®, Kapton® CR).

Multilayer insulation MYLAR®’u
- operation voltage. 400Vrms ; max. 1000V,
- frequency. 500kHz,
- breakdown voltage: 4,8kV.

Multilayer insulation KAPTON®’u
- operation voltage. 400Vrms ; max 1000V,
- frequency . 500kHz,
- material group F,
- breakdown voltage 7-8kV.
