Manufacturer: Concept

Drivers - SCALE-1 Driver Cores series

Driver type Channel number IOUT
[A/kanał]		 UB
[V]		 POUT
[W/kanał]		 fmax
[kHz]		 Topology*

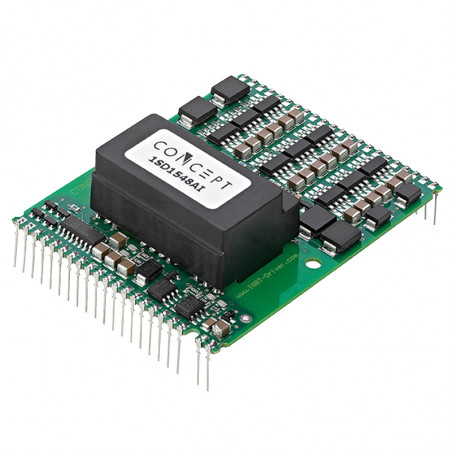

1SD1548AI

 1 48 1200/1700 15 150 2

2SD106AI

 2 6 1200 1 100 2

2SD106AI-17

 2 6 1700 1 100 2

2SD315AI

 2 15 1200/1700 3 100 2

2SD315AI-25

 2 15 2500 3 100 2

2SD315AI-33

 2 15 3300 3 100 2

6SD106EI

 6 6 1200 1 100 2

6SD106EI-17

 6 6 1700 1 100 2

IHD260

 2 6 1200/1700 1 100 2

IHD660

 2 6 1200/1700 3 100 2

IGD616

 1 16 1200/1700 6 150 2

IGD515EI

 1 15 1200/1700 5 100 2+M

IGD515EI-34

 1 15 3400 5 100 2+M

*Topology description, 2 – 2 level converters, M – multi-level converters, MO – optional multilevel configuration, P – parallel configuration
