Disconnectable connectors for the neutral conductor for installation switchboards, with the foot U
  • Disconnectable connectors for the neutral conductor for installation switchboards, with the foot U

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Wieland Polska: złącza, przekaźniki bezpieczeństwa i podzespoły

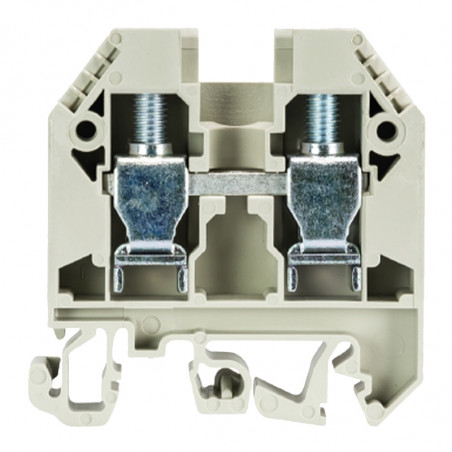

Disconnectable connectors for the neutral conductor for installation switchboards, with the foot U, type WKN

Neutral disconnectable connectors for installation switchgear, with foot U, type WKN



WKN 4 ETK / U


WKN 4 ETK / U Through Connectors


< td colspan = "2">< tr class = "kolb">2. Closing strip with foot U10 mmWE1 / UZ5.523.5753.0100< td style = "text-align: center">< / tr>< td style = "text-align: center">< td style = "text-align: center">< td style = "text-align: center"> Tinned busbar, 10x3
Type Catalog no. Pack
Neutral detachable connectors WKN 4 ETK / U 57.504.8155.0 100
Equipment
1. Mounting rail 35, cover rail. height 7.5 mm L = 2 m 35x27x7.5 EN 50022 98.300.0000.0 1
Mount rail 35, cover rail. height 15 mm L = 2 m 35x24x15 EN 50022 98.360.0000.0 1
Mounting rail 32, G rail L = 2 m 9006 EN 50035 G-32 98.190.0000.0 1
TS 35 closing strip with screw lat. 8 mm 9708/2 S35 Z5.522.8553.0 100
TS 32 closing strip with screw lat. 7.5 mm 9708 Z5.522.7053.0 100
3. Closing plate, thickness 1.5 mm color: gray
color: blue APN 4 ETK 07.312.1155.0 10
Cover plate th. 2 mm color: gray
color: blue
4. Partition wall, thickness 1.5 mm color: gray
color: blue
Partition panel th. 2 mm color: gray
color: blue
Partition wall th. 3 mm color: gray
color: blue
5. Busbar holder for 10x3 busbar w. 4 mm WKISH / U 01.108.3255.0 10
6. E-Cu busbar, 10 x 3 L = 1 m 9813 M 98.290.0000.0 1
L = 1 m 9813 MSN 98.290.1000.0 1
7. Connection connectors, for busbar color: no
