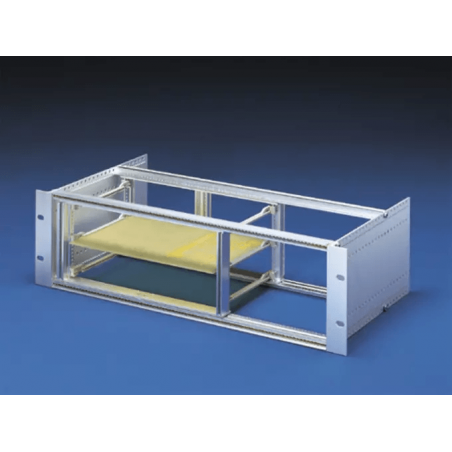

3684207 Horieser Divider Kit 9u for Subrack 3U
  • 3684207 Horieser Divider Kit 9u for Subrack 3U

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

3684207 Horieser Divider Kit 9u for Subrack 3U

  • 3684207
  • Version for Szyna pozioma z przodu
    z wtyczką P0
  • Height (mm) 283,7 mm
  • Width (mm) 181,5 mm
  • Number of slots 9 Slot
  • Packed after 1 część
For the horizontal installation of 6 U/9 U PCBs
in 3 U/4 U subracks.

  • Horizontal installation space:
    3 U subrack: 20 HP (5 slots)
    4 U subrack: 28 HP (7 slots)
  • Vertical installation space:
    (when installing double Eurocards)
    31 HP (without trim frame)
    28 HP (with trim frame)
Material:
Aluminum, clear-chromated

Supply includes:
  • 2 horizontal rails, front,
  • 2 horizontal rails, rear,
  • 1 or 2 horizontal rails, rear, centre,
  • 2 threaded inserts,
  • 4 or 6 insulating strips,
  • 4 connecting parts,
  • assembly parts.
