Manufacturer: Patlite

New generation signal towers, LA6 series

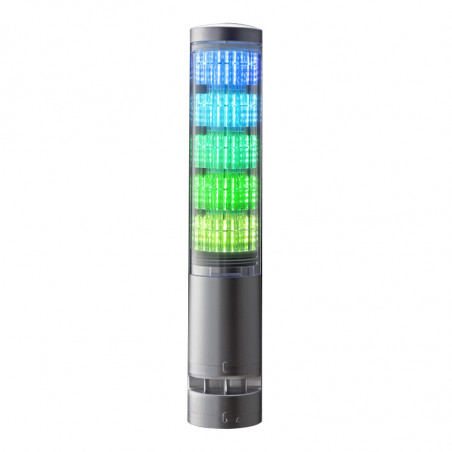

Signal tower LA6

Specification

  • DIMENSIONS - 60mm Diameter
  • OPERATING VOLTAGES - 24V DC
  • FUNCTIONS
    Operates in three different display modes:
    - Single Display
    - Time-trigger Display
    - Pulse-trigger Display
  • MOUNTING
    - Direct Mounting
    - Steel Pole Mounting (LJ Type)
  • BODY STYLE
    - TN : Screwless Terminal
    - LJ : Cable Connection
  • BODY COLOR
    - Off-white
    - Silver
  • STACKABLE TIERS
    - 3 Tier
    - 5 Tier
  • MODULE COLORS
    Total of 4,960 possible colors
  • AUDIBLE STYLE
    11 alarm sounds available
  • CONFORMITY STANDARDS
    - EMC Directive
    - RoHS Conformity
    - UL 508
    - FCC
    - KC
    - CE
  • PROTECTION RATINGS
    - IP 65
    - IP54 with Alarm
  • REMARKS
    - Free downloadable application software
    - UL Recognized Components
Wieże sygnalizacyjne nowej generacji, serii LA6

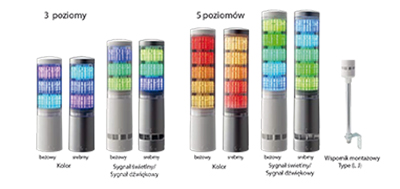

Model code


Wieże sygnalizacyjne nowej generacji, serii LA6
  1. LED Tiers
    3: 3 Tiers
    5: 5 Tiers
  2. Mounting/Wiring
    TN: Direct/Termina
    LJ: Steel Pole [&] Angle Cable
  3. Body Color
    W: Off-white
    U: Silver
  4. Flashing/Alarm
    B: With
    N: Without
  5. Color
    RYG: 3 Tiers
    RYGBC: 5 Tiers
Dimensions

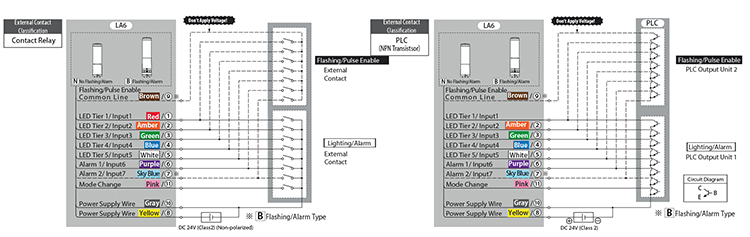

Wiring

Wieże sygnalizacyjne nowej generacji, serii LA6
