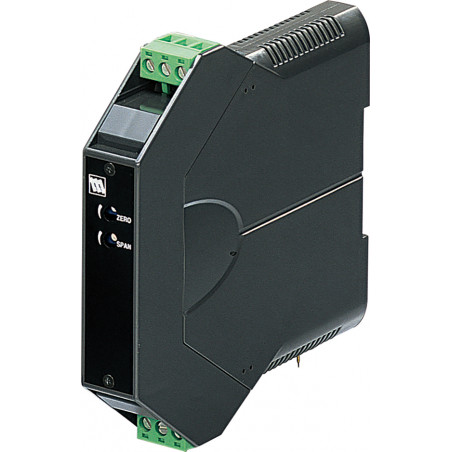

B3FP - two-wire signal converter with frequency input
  • B3FP - two-wire signal converter with frequency input

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: M-SYSTEM

B3FP - two-wire signal converter with frequency input

  • B3FP

B3FP is a two-wire converter with frequency input and 4… 20mA output.


Features

  • Mounting socket for each model - allows easy assembly / disassembly and quick conversion of converters without interfering with the wiring
  • DC power supply
  • Configurable range of inputs
  • Converts the output from the pulse converter into a standard 4… 20mA analog signal
  • DIN rail mounting
  • 2000V AC insulation

Input types: dry contact, pulse
Types of outputs: current 4… 20mA
Possibility to make the range of inputs / outputs on special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric Strength For DC power: 2000V AC
When powered by AC: 1500V AC
Range selection To be determined while ordering
Double Output None
Power DC
Working Temperature - 40 to + 85 ° C
Montage On a DIN rail
Dimensions 18x106x110.5mm
