M2SP - signal converter with frequency input
  • M2SP - signal converter with frequency input

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: M-SYSTEM

M2SP - signal converter with frequency input

  • M2SP

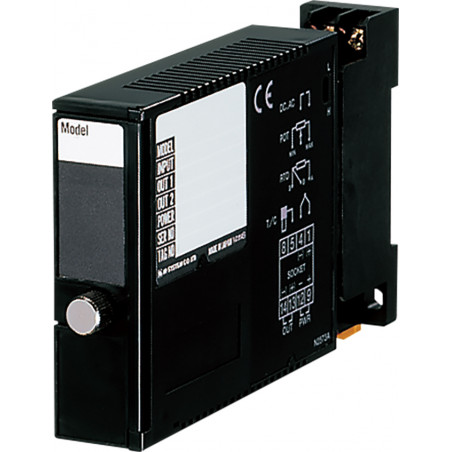

M2SP is a converter with frequency input.


Features

  • Mounting socket for each model - allows easy assembly / disassembly and quick conversion of converters without interfering with the wiring
  • DC / AC power
  • Converts the output from the pulse converter into a standard analog signal
  • DIN rail mounting
  • 2000V AC insulation

Input types: dry contact, pulse
Types of outputs: current or voltage with different ranges
Possibility to make the range of inputs / outputs on special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric Strength For DC power: 2000V AC
When powered by AC: 1500V AC
Range selection To be determined while ordering
Double Output None
Power DC
Working Temperature - 5 to + 55 ° C
Montage On a DIN rail
Dimensions 23x76x124mm
