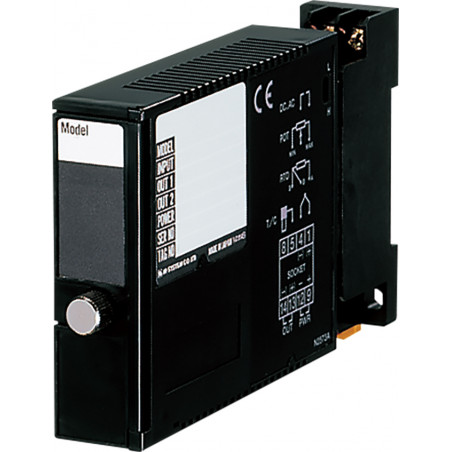

M2XPA3 - signal converter with frequency input - customizable
  • M2XPA3 - signal converter with frequency input - customizable

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: M-SYSTEM

M2XPA3 - signal converter with frequency input - customizable

  • M2XPA3

M2XPA3 is a converter with frequency input - configurable.


Features

  • Mounting socket for each model - allows easy assembly / disassembly and quick conversion of converters without interfering with the wiring
  • DC / AC power
  • Converts the output from the pulse converter into a standard analog signal
  • DIN rail mounting
  • 2000V AC insulation

Input types: dry contact, voltage or current pulse
Types of outputs: current or voltage with different ranges
Possibility to make the range of inputs / outputs on special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric Strength For DC power: 2000V AC
When powered by AC: 1500V AC
Range selection Programmable via PC
Double Output None
Power AC / DC
Working Temperature - 5 to + 55 ° C
Montage On a DIN rail
Dimensions 23x76x124mm
Less
