Photos are for informational purposes only. View product specification
please use latin characters

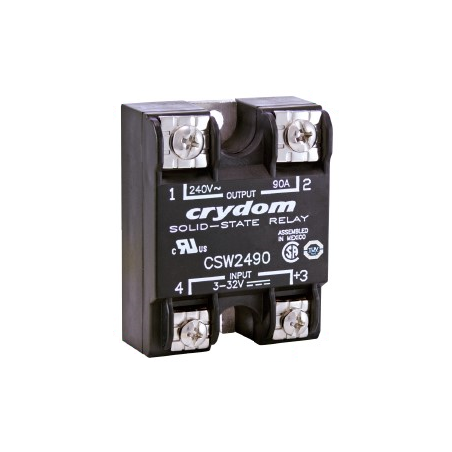

Features
- Range from 10 A to 90 A at 24-280 VAC
- Input range: 3-32 VDC
- Low leakage current in off-state (zero-crossing)
- SCR output for high industrial loads
- EMC compliance for reliable operation in harsh environments
- Replaces CSD and CSE relay series
- Improved SEMS screws and washer
- Redesigned housing with anti-rotation barriers
- Direct connection to copper base
- Direct power connection
- Construction without epoxy resin
Product Selection
Control Voltage | 10 A | 25 A | 50 A | 75 A | 90 A |
3-32 VDC | CSW2410 | CSW2425 | CSW2450 | CSW2475 | CSW2490 |
Series |
---|
CSW |
Load Voltage |
240: 24-280 VAC |
Rated Load Current |
10: 10 amperes 25: 25 amperes 50: 50 amperes 75: 75 amperes 90: 90 amperes |
Mounting |
Puste: screws F: Quick Connect (up to 50 amperes, single pair (up to 25 amperes), double pair (up to 50 amperes)) K: Hex bases for PCB mounting |
Surge Protection |
Puste: not included P: included |
Input LED Status |
Puste: not included G: included |
Surge Suppressor |
Puste: not included H: included |
Thermal Pad |
Puste: not included H: included |
Switching Type |
Empty: Zero-crossing -10: Instant-on |
Required for valid part number
Only optional and not required for valid part number
Output Specification
Description | 10 A | 25 A | 50 A | 75 A | 90 A |
---|---|---|---|---|---|
Operating Voltage (47-63Hz) [Vrms] | 24-280 | 24-280 | 24-280 | 24-280 | 24-280 |
Transient Overvoltage [Vpk] | 600 | 600 | 600 | 600 | 600 |
Maximum Leakage Current at Rated Voltage [mArms] | 1 | 1 | 1 | 1 | 1 |
Minimum dV/dt in OFF-state at Maximum Rated Voltage [V/μsec] | 500 | 500 | 500 | 500 | 500 |
Maximum Load Current [Adc] | 10 | 25 | 50 | 75 | 90 |
Minimum Load Current [mArms] | 150 | 150 | 150 | 150 | 150 |
Maximum Single Half-cycle Surge Current (50/60Hz) [Apk] | 115/120 | 239/250 | 597/625 | 954/1000 | 111/91 |
Maximum Voltage Drop during ON-state at Rated Load Current [V] | 1.15 | 1.15 | 1.15 | 1.15 | 1.15 |
Thermal Resistance Junction-Case (Rjc) [°C/W] | 1.03 | 0.8 | 0.45 | 0.3 | 0.27 |
Maximum I2t for Fusing (½ cycle) (50/60Hz) [A2sec] | 66/60 | 285/259 | 1770/1621 | 4555/4150 | 6560/5976 |
Minimum Power Factor (at Maximum Load) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Input Specification
Description | Parameters |
---|---|
Control Voltage Range | 3-32 VDC |
Minimum Turn-On Voltage | 3 VDC |
Required Turn-Off Voltage | 1.0 VDC |
Maximum Reverse Voltage | -32 VDC |
Typical Input Current | 10 mA at 12 VDC |
Rated Input Impedance | Active current limiting |
Maximum Turn-On Time [msec] | ½ cycle |
Maximum Turn-Off Time [msec] | ½ cycle |
General Specification
Description | Parameters |
---|---|
Dielectric Strength, Input to Output (50/60Hz) | 4000 Vrms |
Minimum Insulation Resistance (at 500V DC) | 109 Ohms |
Maximum Capacitance, Input/Output | 8pF |
Ambient Temperature Range, Operating | -40 to 80 degrees Celsius |
Ambient Temperature Range, Storage | -40 to 125 degrees Celsius |
Weight (Typical) | 74.9 g |
Enclosure Material | UL94 V-0 |
Base Plate Material | Aluminium |
Input Terminal Screw Torque (Nm) | 1.5-1.7 |
Load Terminal Screw Torque (Nm) | 2-2.2 |
Mounting Screw Torque for SSR (Nm) | 2-2.2 |
Input/Load Screw Torque Range (Nm) | with option K: 0.9-1.13 |
Thread Size of Input/Output Terminal Screw | #6-32 UNC / #8-32 UNC |
Humidity for IEC 60068-2-78 | 93% non-condensing |
LED Status Indicator | With option G: green |
MTBF (Mean Time Between Failures) at 40 degrees Celsius ambient | 11,641,553 hours (1,328 years) |
MTBF (Mean Time Between Failures) at 60 degrees Celsius ambient | 7,210,376 hours (823 years) |
Send an inquiry
Are you interested in this product? Do you need additional information or individual pricing?
Contact us
Features
- Range from 10 A to 90 A at 24-280 VAC
- Input range: 3-32 VDC
- Low leakage current in off-state (zero-crossing)
- SCR output for high industrial loads
- EMC compliance for reliable operation in harsh environments
- Replaces CSD and CSE relay series
- Improved SEMS screws and washer
- Redesigned housing with anti-rotation barriers
- Direct connection to copper base
- Direct power connection
- Construction without epoxy resin
Product Selection
Control Voltage | 10 A | 25 A | 50 A | 75 A | 90 A |
3-32 VDC | CSW2410 | CSW2425 | CSW2450 | CSW2475 | CSW2490 |
Series |
---|
CSW |
Load Voltage |
240: 24-280 VAC |
Rated Load Current |
10: 10 amperes 25: 25 amperes 50: 50 amperes 75: 75 amperes 90: 90 amperes |
Mounting |
Puste: screws F: Quick Connect (up to 50 amperes, single pair (up to 25 amperes), double pair (up to 50 amperes)) K: Hex bases for PCB mounting |
Surge Protection |
Puste: not included P: included |
Input LED Status |
Puste: not included G: included |
Surge Suppressor |
Puste: not included H: included |
Thermal Pad |
Puste: not included H: included |
Switching Type |
Empty: Zero-crossing -10: Instant-on |
Required for valid part number
Only optional and not required for valid part number
Output Specification
Description | 10 A | 25 A | 50 A | 75 A | 90 A |
---|---|---|---|---|---|
Operating Voltage (47-63Hz) [Vrms] | 24-280 | 24-280 | 24-280 | 24-280 | 24-280 |
Transient Overvoltage [Vpk] | 600 | 600 | 600 | 600 | 600 |
Maximum Leakage Current at Rated Voltage [mArms] | 1 | 1 | 1 | 1 | 1 |
Minimum dV/dt in OFF-state at Maximum Rated Voltage [V/μsec] | 500 | 500 | 500 | 500 | 500 |
Maximum Load Current [Adc] | 10 | 25 | 50 | 75 | 90 |
Minimum Load Current [mArms] | 150 | 150 | 150 | 150 | 150 |
Maximum Single Half-cycle Surge Current (50/60Hz) [Apk] | 115/120 | 239/250 | 597/625 | 954/1000 | 111/91 |
Maximum Voltage Drop during ON-state at Rated Load Current [V] | 1.15 | 1.15 | 1.15 | 1.15 | 1.15 |
Thermal Resistance Junction-Case (Rjc) [°C/W] | 1.03 | 0.8 | 0.45 | 0.3 | 0.27 |
Maximum I2t for Fusing (½ cycle) (50/60Hz) [A2sec] | 66/60 | 285/259 | 1770/1621 | 4555/4150 | 6560/5976 |
Minimum Power Factor (at Maximum Load) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Input Specification
Description | Parameters |
---|---|
Control Voltage Range | 3-32 VDC |
Minimum Turn-On Voltage | 3 VDC |
Required Turn-Off Voltage | 1.0 VDC |
Maximum Reverse Voltage | -32 VDC |
Typical Input Current | 10 mA at 12 VDC |
Rated Input Impedance | Active current limiting |
Maximum Turn-On Time [msec] | ½ cycle |
Maximum Turn-Off Time [msec] | ½ cycle |
General Specification
Description | Parameters |
---|---|
Dielectric Strength, Input to Output (50/60Hz) | 4000 Vrms |
Minimum Insulation Resistance (at 500V DC) | 109 Ohms |
Maximum Capacitance, Input/Output | 8pF |
Ambient Temperature Range, Operating | -40 to 80 degrees Celsius |
Ambient Temperature Range, Storage | -40 to 125 degrees Celsius |
Weight (Typical) | 74.9 g |
Enclosure Material | UL94 V-0 |
Base Plate Material | Aluminium |
Input Terminal Screw Torque (Nm) | 1.5-1.7 |
Load Terminal Screw Torque (Nm) | 2-2.2 |
Mounting Screw Torque for SSR (Nm) | 2-2.2 |
Input/Load Screw Torque Range (Nm) | with option K: 0.9-1.13 |
Thread Size of Input/Output Terminal Screw | #6-32 UNC / #8-32 UNC |
Humidity for IEC 60068-2-78 | 93% non-condensing |
LED Status Indicator | With option G: green |
MTBF (Mean Time Between Failures) at 40 degrees Celsius ambient | 11,641,553 hours (1,328 years) |
MTBF (Mean Time Between Failures) at 60 degrees Celsius ambient | 7,210,376 hours (823 years) |
Your review appreciation cannot be sent
Report comment
Report sent
Your report cannot be sent
Write your review
Review sent
Your review cannot be sent
