UG-3-A40 UNIGUARD SUPERFLOW

UG-3-A4O Uniguard Superflow

Optical duct smoke detector with service alarm and built-in control unit for duct installation, 24V.

Properties

• Certified by VdS in Germany, G207134.
• Built-in control unit (Stand Alone), 24V
• 2 alarm relays
• 1 service alarm relay
• Automatic sensitivity adjustment: fewer false alarms and longer lifespan
• Quick and simple installation
• Flow indicator with high sensitivity
• New venturi pipe shape gives max. venturi effect
• Foolproof pipe mounting, cannot be fitted incorrectly
• Complete with pre-assembled cable entries
• Test hole in cover
• Patented

Technical Data

Standard length 0,6 m. Hole diameter 38 mm. The length of the venturi pipe shall be chosen based upon how wide the ventilation duct is. The venturi pipes are available in 3 lengths; 0,6, 1,5 and 2,8 m. When the ventilation duct is wider than 0,6 m (dia), the venturi pipe should penetrate the whole duct. Please see below sketch.

Operation

Uniguard has been developed to detect smoke in ventilation ducts and combines a smoke detector and an adaptor system where both tube and housing are specially designed for optimum airflow through the smoke detector. There is a built-in alarm relay to control fire-safety dampers, to stop ventilation fans, or to activate accoustic and optical alarms etc. There is a built-in service alarm relay to let you know when maintenance is needed, before a false alarm occurs. The detector contains an intelligent controlling circuit. This circuit is adjusting the sensitivity to give an optimal function during the whole life time of the detector. When the controlling circuit can no longer compensate for contamination, a service alarm is indicated. Uniguard Superflow has 4 premounted IP67 approved cable entries with built-in cable anchorage for diameter 4-11 mm, type Klikseal. The detector has a bayonet fitting to simplify mounting and removal.

Accessories

Basic principles for positioning

For the airflow through the adaptor to be representative of the airflow in the ventilation duct, install the detector at a place where flow meters etc. normally are mounted, please see our installation instructions. You can also use your national or local rules for mountage according to "Methods for measuring airflow in ventilation systems".

Installation

The venturi pipe is made of aluminium and can easily be shortened to suit the diameter of the duct. Hole diameter is 38 mm. For insulated or circular ducts - use the mounting bracket, hole diameter is then 51 mm.

Maintainance

When the detector becomes contaminated, sensitivity is increased, triggering the service alarm. This can be avoided fo r a considerable time by cleaning the detector once a year with a vacuum cleaner.

Air flow monitoring

The detector is fitted with a red plastic switch tongue. When the detector is correctly installed, the tongue is bent outwards by the air flow. The switch tongue provides a simple confirmation that there is no leakage and that the air flow from the duct is in fact flowing through the housing.

Function Test

When installation is complete, the detector should be tested. This can be carried out with smoke or suitable aerosol testspray.

Caution: When installing outdoors or in cold attics etc., where there is a risk for condensation, the detector should be insulated from the surrounding air with e.g. our weatherproof housing UG-COVER. In such cases it should be marked with a sign "Hidden Detector".

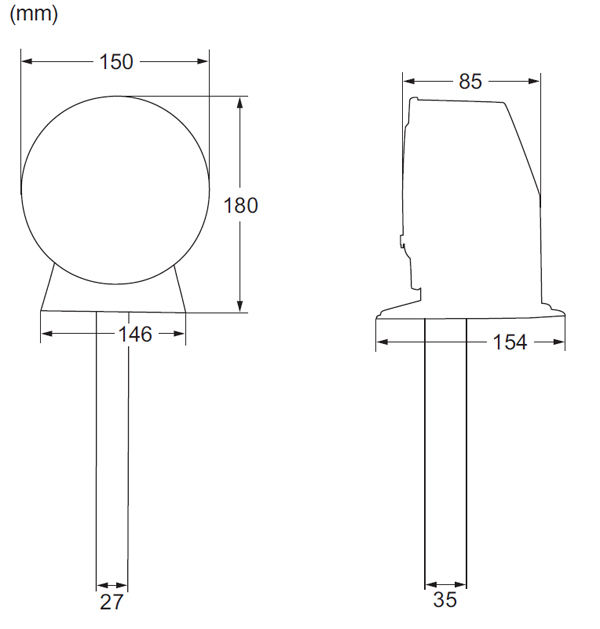

Dimensions

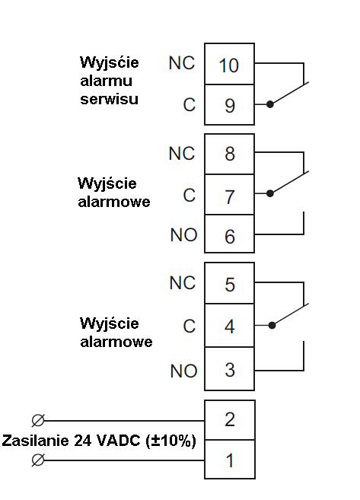

Connection scheme

Alarm relay: two changing contacts, max 250V, 5A, each.
The relay outputs are shown in normal operation/power on condition..
