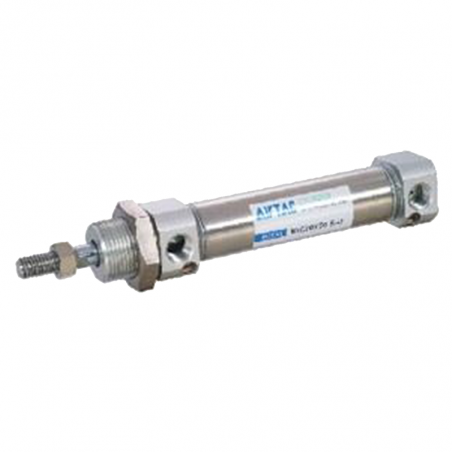

Standard actuators ISO 6432 (H series)
  • Standard actuators ISO 6432 (H series)

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: AirTAC

Standard actuators ISO 6432 (H series)

- Actuators made according to ISO6432, standard assembly.
- Different cylinder and accessories types available.
- Small dimensions,
- Stainless steel piston rod guarantees long lifetime.
- Special construction reduces force and enlarges lifetime.


Size mm
8
 10 12 16 20 25 32 40
Operation Double       Pojedynczego działania
Medium Air
Operation pressure MI, MIC, MID, MIJ 0.5~10.0bar (0.05~1.0MPa) (7~145psi)
MSI, MTI 2.0~10.0bar (0.2~1.0MPa) (28~145psi)
Max pressure 15.0bar (1.5MPa) (215psi)
Temperature °C -20 do +70
Speed range Double: 30~800       Single:50~800
Amoritistaion type MIC: controlled pad    Other: buffer
Terminal M5x0.8 1/8" 1/4"


Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

- Actuators made according to ISO6432, standard assembly.
- Different cylinder and accessories types available.
- Small dimensions,
- Stainless steel piston rod guarantees long lifetime.
- Special construction reduces force and enlarges lifetime.


Size mm
8
 10 12 16 20 25 32 40
Operation Double       Pojedynczego działania
Medium Air
Operation pressure MI, MIC, MID, MIJ 0.5~10.0bar (0.05~1.0MPa) (7~145psi)
MSI, MTI 2.0~10.0bar (0.2~1.0MPa) (28~145psi)
Max pressure 15.0bar (1.5MPa) (215psi)
Temperature °C -20 do +70
Speed range Double: 30~800       Single:50~800
Amoritistaion type MIC: controlled pad    Other: buffer
Terminal M5x0.8 1/8" 1/4"
