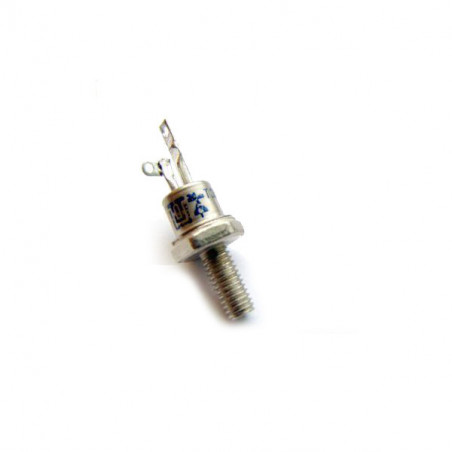

Standard thyristors
  • Standard thyristors

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: KUBARA LAMINA S.A.

Standard thyristors

Thyristor typeIT(AV)/TC
[A/°C]		UDRM VRRM
[V]		ITSM
[A]		I2t
[A2s]		IGT
[mA]		duD/dt
[V/µs]		tq
[µs]		Rthjc
[°C/W]		Torque
[Nm]		Drawing number
T22-10 10/70 100-800 150 112 50 100-1000 40 2,0 1,5-2 1
T32-16 16/95 100-800 300 450 50 100-1000 100 1,2 2-2,5
T32-20 20/85 100-800 350 620 75     1 2-2,5 2
T32-25 25/80 100-800 450 1025 75     1 2-2,5
T52-63 63/95 400-1200 1300 8500 150 320-1000 100 0,35 14-12 4/5
T51-63 63/95 1400-2000
T52-80 80/90 400-1200 1450 10500
T51-80 80/90 1400-1800
T52-100 100/85 400-1200 1600 12800
T62-125 125/90 400-1200 4000 80000 150 320-1000 150 0,14 28-32 6
T61-125 125/90 1400-2000
T62-150 150/90 400-1200 4500 101000
T61-150 150/90 1400-1600
T62-175 175/90 400-1200 4700 110000
T61-175 175/90 1400-1600
T62-200 200/80 400-1200 5000 125000       0,14
T62-225 225/80 400-800 5500 125000
T71-250 250/75 1200-2400 6300 200000 200 320-1000 200 0,10 38-41 7
T71-300 300/70 400-2200 7600 290000
T71-350 350/70 400-2000 9100 415000
T63-200 200/90 400-2200 3600 65000 150 320-1000 150 0,08 4,5-6,5 8
T63-300 300/80 400-1600 4500 101000         kN
T63-400 400/65 400-1200 4700 110000
T73-450 450/70 400-2400 7600 290000 200 320-1000 200 0,06 9-11 11
T73-550 550/65 400-2000 9100 415000         kN
T73-600 600/60 400-1200 9100 415000
T75-650 650/65 400-1600 8100 330000 150 320-1000 200 0,04 9-11 9
T75-750 750/65 400-1600 9500 450000         kN
T83-630 630/70 400-2400 10200 520000 200 320-1000 250 0,037 12-14 11
T83-800 800/70 400-1600 13000 845000         kN
T83-1000 1000/75 200-800 18000 1620000
T95-1000 1000/70 400-2400 20000 2000000 200 320-1000   0,023 22,5-25 10
T95-1250 1250/70 400-2000 20000 2000000         kN
T95-1400 1400/70 400-1600 21000 2200000
T95-1600 1600/70 200-800 27000 3600000

Thyristor typeIT(AV)/TC
[A/°C]		UDRM VRRM
[V]		ITSM
[A]		I2t
[A2s]		IGT
[mA]		duD/dt
[V/µs]		tq
[µs]		diT/dt
[A/µs]		Rthjc
[°C/W]		Torque
[Nm]		Casing drawing number
F22-10 10/70 100-800 120 72 100 200-1000 12,5-40 20 2 1,5-2, Nm 1
F32-20 20/80 100-800 300 450 100 200-1000 12,5-40 20 0,95 2,-2,5 Nm 2
F32-25 25/80
F51-63 63/80 800-1200 10800 4000 150 320-1000 16-32 150 0,32 14,-17, Nm 4
F51-80 80/75 800-1200 1260 7900
F61-125 125/85 800-1600 3600 65000 150 320-1000 20-63 150 0,14 28,-32, Nm 6
F62-150 150/85 800-1200 4000 80000
F71-225 225/80 800-1200 6100 168000 200 320-1000 25-63 150 0,1 38,-41, Nm 7
F63-200 200/85 800-1600 3100 48000 150 320-1000 20-63 150 0,08 4,5-6,5 kN 8
F63-300 300/70 800-1200 4000 80000 150   25-63
F75-500 500/70 800-1200 7200 26000 150 320-1000 25-63 200 0,04 9,-11, kN 9
P71-225 225/80 800-1200 6100 186000 200 320-1000 25-40 250 0,1 38,-41, Nm 7
P83-500 500/90 800-1200 8000 320000 200 320-1000 25-63 400 0,037 12,-14, kN 11
P83-600 600/75 800-1200 9600 460000 200 320-1000
P95-900 900/75 800-1200 15000 1125000 200 320-1000 32-63 300 0,023 22,5-25, kN 10

Drawing 1 Drawing 2 Drawing 3 Drawing 4
T22, F22, S22 T32, F32, S32 T42, S42 T52, F51, T52, F52
Tyrystor lamina T22, F22, S22 Tyrystor lamina T32, F32, S32 Tyrystor lamina T42, S42 Tyrystor lamina T52, F51, T52, F52
Drawing 5
T51, F51, T52, F52...-X1
Tyrystor Lamina T51, F51, T52, F52...-X1
Drawing 6
T61, F61, T62, F62
Tyrystor Lamina T61, F61, T62, F62
Drawing 7
T71, F71, P71
Tyrystor Lamina T71, F71, P71
Drawing 8 Drawing 9
T63,F63 T75,F75
Tyrystor Lamina T63,F63 Tyrystor Lamina T75, F75
Drawing 10 Drawing 11
T95,P95 T73,F73,P73,T83,P83
Tyrystor Lamina T95,P95 Tyrystor Lamina T73,F73,P73,T83,P83
Less
