Manufacturer: METCASE

METTEC 19 "

METTEC 19 Rack Cassettes
Resistant Sub Rack 19 "cassettes with integrated comfortable handles. All aluminum projects consist of a cast front of the faces, side and rear casts under pressure panels and flat top and base panels. Front frame painted RAL 7035; Housing treated Interlox 338. The front panel of the set is ordered separately.

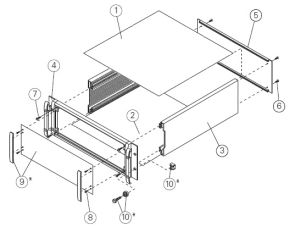

Description
1) Upper housing
2) base panel
3) Side extrusion (X2)
4) Front frame 19 "
5) Rear extrusion
6) M4 x 16 mm (x2 / 4)
7) M4 x 16 mm (x2 / 4)
8) M3 x 8 mm (X4)
9) * Set of the front panel
10) * Assembly Kit 19 "
* Accessories
Standard colors

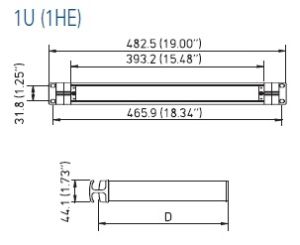

Dimensions and drawings of METTEC 19 "
METTEC 19 "
Product No. H D d
Inner depth
M 59 10 015 1U (1he) 167.5 (6.59 ") 158.8 (6.25 ")
M 59 10 025 1U (1he) 267.5 (10.35 ") 258.8 (10.18 ")
M 59 10 035 1U (1he) 367.5 (14.46 ") 358.8 (14.12 ")
M 59 20 015 2U (2he) 167.5 (6.59 ") 159.2 (6.27 ")
M 59 20 025 2U (2he) 267.5 (10.35 ") 259.2 (10.20 ")
M 59 20 035 2U (2he) 367.5 (14.46 ") 359.2 (14.14 ")
M 59 30 015 3U (3he) 167.5 (6.59 ") 159.2 (6.27 ")
M 59 30 025 3U (3he) 267.5 (10.35 ") 259.2 (10.20 ")
M 59 30 035 3U (3he) 367.5 (14.46 ") 359.2 (14.14 ")

A set of front panel

Product No. Version
M 59 00 010 1U (1he) 33.6 (1.32 ") 22.1 (0.87 ")
M 59 00 020 2U (2he) 67.1 (2.64 ") 32.5 (1.27 ")
M 59 00 030 3U (3he) 111.0 (4.37 ") 77.0 (3.03 ")
Base plate
.
Product No. Version
M 59 00 201 167.5 (6.59 ") 149 (5.86 ")
M 59 00 202 267.5 (10.35 ") 249 (9.80 ")
M 59 00 203 367.5 (14.46 ") 349 (13.74 ")
19 "assembly kit
Product No. Elements Color
M 60 00 035 1 + 2 + 3 x4 RAL 7035 2
M 59 00 016 1 + 2 + 3 x4 RAL 9005 2
