Versamet - Cartridge - Subrack 19 "
  • Versamet - Cartridge - Subrack 19 "

Photos are for informational purposes only. View product specification

please use latin characters

Versamet - Cartridge - Subrack 19 "

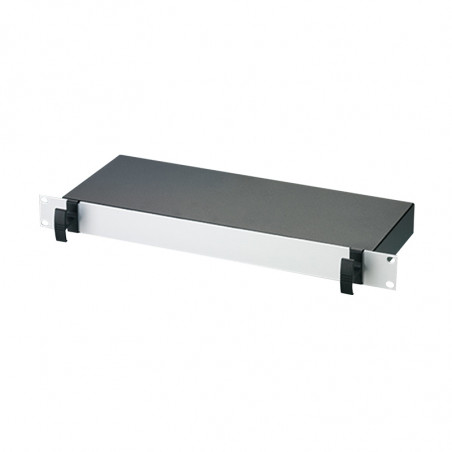

Modern and versatile 19” rack cases with anodised aluminium front panel and integrated ‘comfort-handles’. Folded aluminium case body with all fixings hidden on the underside. Removable base and rear panel for easy access.

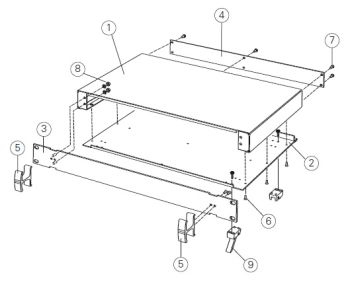

Supply
1)Top cover
2)Base panel
3)19” front panel
4)Rear panel
5)Handles
6)M3 x 8 mm (x6)
7)M3 x 8 mm (x4/6)
8)M4 nut [&] washer (x4)
9)*ABS feet
*Accessories
Standardowe kolory

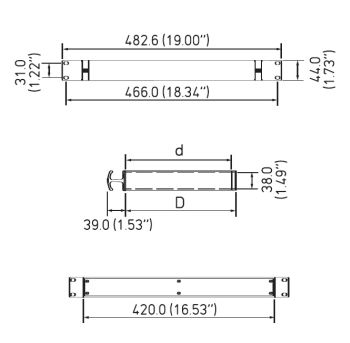

Dimensions and drawings Versamet 19
Versamet 19
Part No. H D d Colours
M 49 19 115 1U (1HE) 165 (6.49”) 153 (6.02”) RAL 7035
M 49 19 119 1U (1HE) 165 (6.49”) 153 (6.02”) RAL 9005
M 49 19 125 1U (1HE) 265 (10.43”) 253 (9.96”) RAL 7035
M 49 19 129 1U (1HE) 265 (10.43”) 253 (9.96”) RAL 9005


ABS Case Feet

Part No. Article Colours
M 56 00 015 1 + 2 x4 RAL 7035
M 56 00 019 1 + 2 x4 RAL 9005
M 56 00 045 1 + 2 x4 + 3 x2 RAL 7035
M 56 00 049 1 + 2 x4 + 3 x2 RAL 9005


19” Mounting Kit
Part No. Article Colours
M 60 00 035 1 + 2 + 3 x4 RAL 7035 2
M 59 00 016 1 + 2 + 3 x4 RAL 9005 2
PCB Mounting Kit
Part No. Article
M 56 00 001 1 + 2 x10
