SVR109 H3 - Current transformer

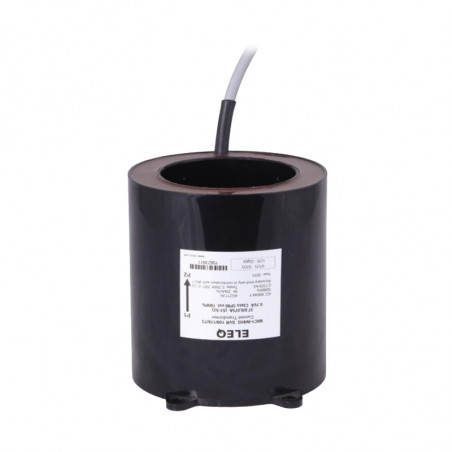

SVR109 H3 Current transformer

The current transformer for self powered relay in SVR109 housing is specially designed for application in medium voltage installations as Ring Main Units (RMU). This solid, cast resin transformer is cost effective and very reliable. The transformer is fitted lengthwise with the cable. The transformer is provided with a permanent lead with connector for connection to the relay. The standard connector code is FKCVR 2.5/4-ST . The transformers are specially designed for dynamic loads and applicable for the so called self powered relays like Woodward SEG, WIC1 and others.



Rated data

Location Indoor use
Protection degree IP20
Rated frequency 50/60Hz
Insulation class E (120°C)
Primary window sutable for cable Ø73mm
Material PU i PA6.6
Secondart terminal Cable 110mm with connector FKCVR 2.5/4-ST
Test winding 0.288A
Burden Contact manufacturer for details


Current range Class Cable diameter Number
16-56A 5P80 73mm

4G2115N
16-56A 10P80 73mm

4G2111N
32-112A 5P80 73mm

4G2112N
64-224A 5P80 73mm

4G2113N
128-448A 5P80 73mm

4G2114N

Connection diagram

SVR109 H3 - Przekładnik prądowy - schemat łączeniowy


Dimensions

SVR109 H3 - Przekładnik prądowy - wymiary

Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

SVR109 H3 Current transformer

The current transformer for self powered relay in SVR109 housing is specially designed for application in medium voltage installations as Ring Main Units (RMU). This solid, cast resin transformer is cost effective and very reliable. The transformer is fitted lengthwise with the cable. The transformer is provided with a permanent lead with connector for connection to the relay. The standard connector code is FKCVR 2.5/4-ST . The transformers are specially designed for dynamic loads and applicable for the so called self powered relays like Woodward SEG, WIC1 and others.



Rated data

Location Indoor use
Protection degree IP20
Rated frequency 50/60Hz
Insulation class E (120°C)
Primary window sutable for cable Ø73mm
Material PU i PA6.6
Secondart terminal Cable 110mm with connector FKCVR 2.5/4-ST
Test winding 0.288A
Burden Contact manufacturer for details


Current range Class Cable diameter Number
16-56A 5P80 73mm

4G2115N
16-56A 10P80 73mm

4G2111N
32-112A 5P80 73mm

4G2112N
64-224A 5P80 73mm

4G2113N
128-448A 5P80 73mm

4G2114N

Connection diagram

SVR109 H3 - Przekładnik prądowy - schemat łączeniowy


Dimensions

SVR109 H3 - Przekładnik prądowy - wymiary
