Manufacturer: M-SYSTEM

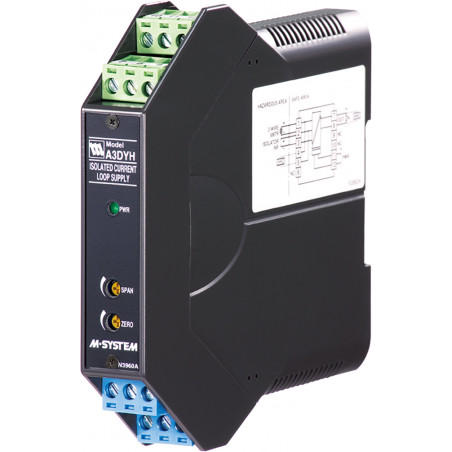

A3DYH - Current loop power supply for HART signals

  • A3DYH

A3DYH is a current loop power supply.


Features

  • Power supply for HART signals
  • It powers the 4… 20mA DC loop
  • Electrically isolates the output signal from the power input
  • Isolates and transmits HART signals bidirectionally
  • Provides galvanic isolation
  • Short-circuit protection
    • < li> Output power - 24 V DC
  • AC / DC power

Input: 4… 20mA
Output: 4… 20mA

< / tbody>
Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric strength DC power: 2000V AC
When powered by AC: 1500V AC
Range Selection None
Double Output None
Power AC / DC
Operating Temperature - 5 down to + 55 ° C
Mounting On a DIN rail
Dimensions 18x106x110.5mm
