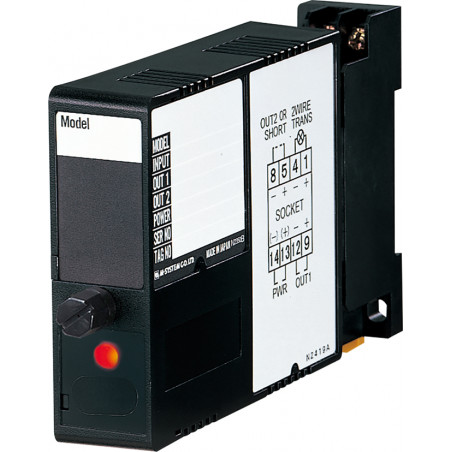

M2D - Current loop power supply

  • M2D

M2D is a current loop power supply.


Features

  • Powers 4… 20mA DC current loop
  • Mounting socket for each model - enables easy assembly / disassembly and quick conversion of converters without interfering with the wiring.
  • Electrically isolates the output signal from the power input
  • Short-circuit protection
  • Output power supply - 24 V DC
  • AC / DC power

Input: 4… 20mA
First output: 0… 10V
Second output: 4… 20mA


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric strength DC power: 2000V AC
At AC power: 150 0V AC
Range Selection None
Double exit None
Power AC / DC
Working temperature - 5 to + 55 ° C
Mounting DIN Rail
Dimensions 23x76x124mm
