Manufacturer: Kerafol

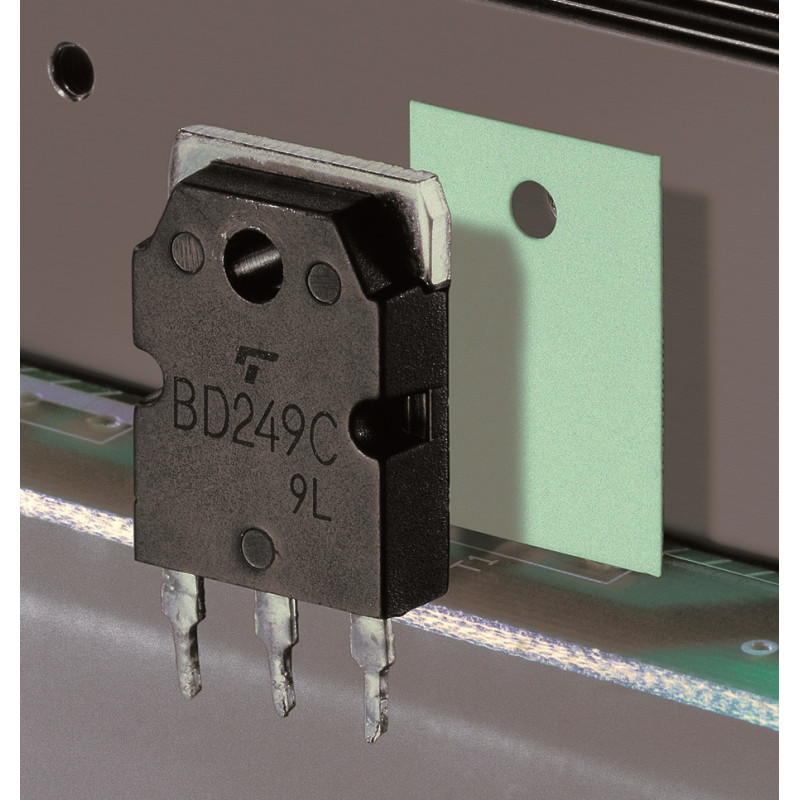

Thermally conductive TO-247 pad

A thermally conductive silicone pad made of KERATHERM 86/37 material. It is characterized by good thermal conductivity and excellent insulation properties. The material's adhesion facilitates its positioning during assembly.

Dimensions of the TO-247 thermally conductive pad:

  • Length: 21mm
  • Width: 17mm
  • Thickness: 0.225mm
  • Hole Diameter: 3.2mm
Properties Unit
Color - Green
Base Material - Silicone
Thermal Resistance K/W 0.32
Thermal Conductivity W/mK 1.8
Breakdown Voltage kV 8.0
Hardness Shore 00 65-75
Application Temperature °C -60 – 250 °C
Density g/cm³ 2.29
Flammability Class UL-94 V-0
Less
Read more
1.70 PLN
1.70 PLN Gross price / pcs.
1.38 PLN Net price / pc.
Tax included
Availability: Available quantity: 100
