Manufacturer: Kerafol

Thermal thermal filling materials - SoftTherm

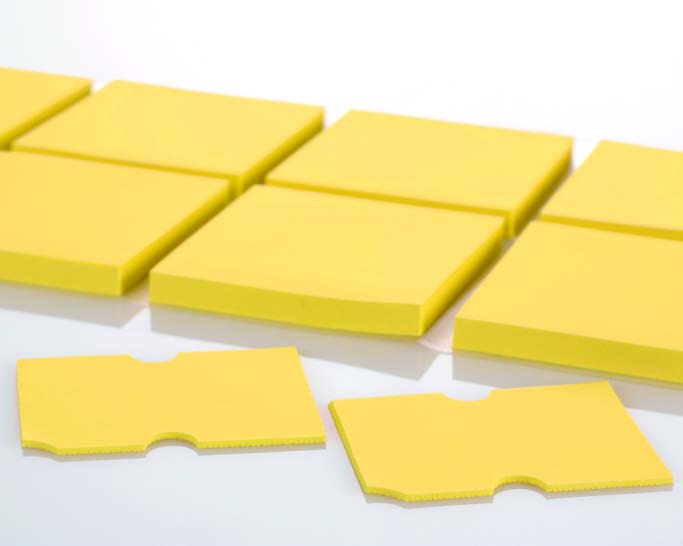

Thermoconducting filling materials - Softtherm


SOFTTHERM® is the ideal material for smoothing out even large component irregularities. Thanks to its outstanding compressibility, it produces an optimum thermal contact combined with electrical insulation. The supplied thicknesses range from 0.5 - 5.0 mm. Other thicknesses or shapes are available on request.

Product features
  • Highly flexible tapes
  • Graduated thermal conductivity
  • Good electrical insulation
  • High temperature stability
  • Available with or without silicon
  • Available with fibreglass reinforcement
  • Single-sided adhesive coating possible
Packaging
Sheets: 450 x 250 mm
Rolls:
  • 500 mm wide (without adh. coating)
  • 470 mm wide (with adhesive coating)
Custom dimensions on request.


Technical data


Material Thermal conductivity Thermal resistance Breakdown voltage Thickness** Hardness
W/mK K/W kV mm Shore 00
86/600 6.0 0.20 1.5 0.5 - 1.5 (+0.5) 60-75
86/525 5.5 0.22 1.3* 0.5 - 4.0 (+0.5) 50-65
86/500 5.0 0.25 1.0 0.5 - 2.0 (+0.5) 65-75
86/450 4.5 0.27 5.0 0.5, 1.0 65-75
86/325 3.0 0.41 6.0 0.5 - 3.0 (+0.5), 4.0 35-50
86/300 3.0 0.41 7.0 0.5, 0.8, 1.0, 1.5, 2.0 - 5.0 (+1.0) 60-75
86/320 2.5 0.50 5.0 0.5, 1.0, 1.5, 2.0, 3.0, 4.0, 4.5 25-38
86/235 2.0 0.60 6.0 0.5 - 3.0 (+0.5), 4.0, 5.0 25-40
86/238 2.0 0.60 6.0 0.5, 1.0 - 3.0 (+1.0) 30-45
86/225 2.0 0.60 6.0 0.5 - 4.0 (+0.5), 5.0 30-45
86/228 2.0 0.60 6.0 0.5, 1.0 30-45
86/125 1.5 0.80 6.0 0.5 - 3.0 (+0.5), 4.0 - 5.0 (+0.5) 10-25
86/200 1.0 1.20 8.0 0.5 - 5.0 (+0.5) 10-20
U 281 2.0 0.60 7.0 0.5, 1.0, 2.0 55-65
3500 3.5 0.36 5.0 1.0 – 4.0 (+0.5) 45-65


(*) Rounded values.
(**) Parameters for bolded values.
