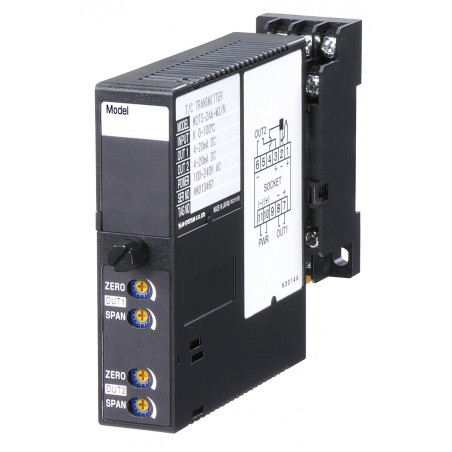

W2TS - Temperature converter with a thermocouple input with a double exit
  • W2TS - Temperature converter with a thermocouple input with a double exit

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: M-SYSTEM

W2TS - Temperature converter with a thermocouple input with a double exit

  • W2TS

W2TS is a temperature converter with thermocouple input with two outputs.


Features

  • AC / DC power
  • LED power indicator < / li>
  • Provides standard analog output
  • Dual output
  • DIN rail mounting
  • High accuracy
  • Type available with fast response time
  • 2000V AC insulation

Input types: Thermocouple - K, E, J, T, B, R, S, N
Types of outputs: current or voltage with different ranges
Possibility to make a range of inputs / outputs on a special order.


< / table>
Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

W2TS is a temperature converter with thermocouple input with two outputs.


Features

  • AC / DC power
  • LED power indicator < / li>
  • Provides standard analog output
  • Dual output
  • DIN rail mounting
  • High accuracy
  • Type available with fast response time
  • 2000V AC insulation

Input types: Thermocouple - K, E, J, T, B, R, S, N
Types of outputs: current or voltage with different ranges
Possibility to make a range of inputs / outputs on a special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric Strength DC: 2000V AC
AC: 1500V AC
Ranges selection To be set when ordering
Double exit Yes
Power AC / DC
Operating Temperature - 5 to + 55 ° C < / td>
Mounting DIN rail
Dimensions 29.5x88.5x124mm
< / table>
Less
Read more
