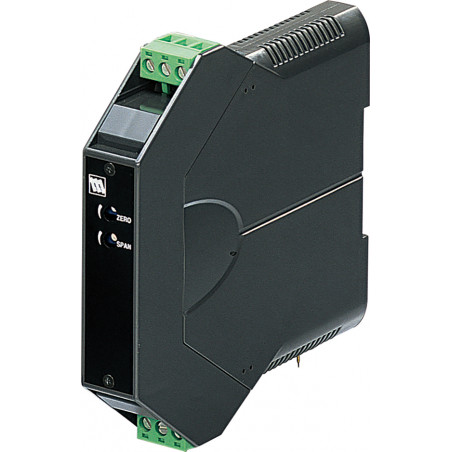

B3FT - two-wire temperature converter with thermocouple input
B3FT - two-wire temperature converter with thermocouple input

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: M-SYSTEM

B3FT - two-wire temperature converter with thermocouple input

  • B3FT
The

B3FT is a two-wire temperature converter with thermocouple input.


Features

  • DC power
  • Provides a standard analog signal
  • Two-wire converter
  • Configurable input range
  • DIN rail mounting
  • 2000V AC insulation

Types of inputs: Thermocouple - K, E, J, T, R, N
Kinds of outputs: current 4… 20mA
Possibility of making the range of inputs / outputs on special order.


< table border = "1" style = "width: 100%;"> Wire connection M3 screw terminals Separation Input / Output / Power Dielectric strength DC: 2000V AC Ranges selection Configurable Input Range Double Output None Power DC Operating Temperature - 40 to + 85 ° C Mounting DIN rail Dimensions 18x106x110.5mm
