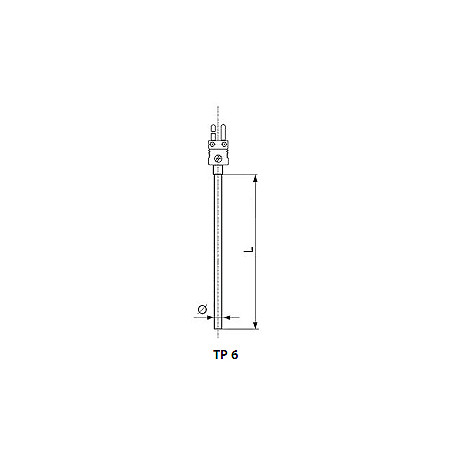

Thermoelectric temperature jacket sensor with plug. Type: tp6
Thermoelectric temperature jacket sensor with plug. Type: tp6

Photos are for informational purposes only. View product specification

please use latin characters

Thermoelectric temperature jacket sensor with plug. Type: tp6

Thermo-element type:
S, K, J, T
Thermo-electrode wire diameter
0,25   0,5   1   1,5   1,6  2   3  3,2   4,5  5   6  8 mm
Sensor length:
for client request
standard execution:
insulated weld

Application:
Sensor is used in technology processes temperature measurement

It is possible to connect measurement weld with coat (grounding). For client request plug can be replaced with socket.

Order method
Type Type Class Length L [mm] Coat diameter
Ø [mm]		 Coat material Plug or socket type
TR 6

K
S
J
T

 1
2		 ........ mm

0,25
0,5
1,0
1,5
1,6
2,0
3,0
3,2
4,5
6
8

Metal
1.4301
1.4541
1.4841 Inconel 600

standard

mini
Less
