Three phase
  • Three phase

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Infineon

Three phase

  Type Id/Tc
[A/°C]
VDRM ,VDDR
[V]
IFRMSM
[A]
IFSM
[A]
RthJC
[°C/W]
Brake IGBT Casing
Vces
[V]
Ic
[A]
MOSTKI TRÓJFAZOWE FIRMY EUPEC schemat DD B6U 84N..R 85/100 1200, 1600 60 550 1,45     EC1
DD B6U 100 N..R 100/100 1200, 1600 60 550 1,15     EC1
DD B6U 144 N..R 145/100 1200, 1600 100 1000 0,89     EC1
schemat 1 DD B6U 84N..RR 85/100 1200, 1600 60 550 1,45 1200 50 EC2
DD B6U 100N..RR 100/100 1200, 1600 60 550 1,15 1200 50 EC2
MOSTKI TRÓJFAZOWE FIRMY EUPEC schemat 2 DD B6U 104 N 16 RR 105/100 1600 60 550 1 1200 50 EC4
DD B6U 134 N 16 RR 134/100 1600 80 550 0,7 1200 70 EC4
MOSTKI TRÓJFAZOWE FIRMY EUPEC schemat 4 TD B6HK 74 N 16 RR 75/85 1600 45 400 1,1 1200 50 EC3
TD B6HK 104 N 16 RR 104/85 1600 60 500 0,75 1200 50 EC3
TD B6HK 124 N 16 RR 125/85 1600 60 550 0,8 1200 70 EC3

  Type Id/Tc
[A/°C]
VDRM ,VDDR
[V]
IFRMSM
[A]
IFSM
[A]
RthJC
[°C/W]RthJC [°C/W]
Casing
MOSTKI TRÓJFAZOWE FIRMY EUPEC schemat DD B6U DD B6U 85 N 1200, 1600 60 550 85/100 1,45 IP1
DD B6U 145 N 1200, 1600 100 1000 145/100 0,89 IP1
DD B6U 205 N 1200, 1600 120 1375 205/100 0,59 IP1
DD B6U 215 N 1200, 1600 125 1950 215/110 0,49 IP2
MOSTKI TRÓJFAZOWE FIRMY EUPEC schemat TD B6HK TD B6HK 95 N 1200, 1600 75 620 95/85 0,82 IP2
TD B6HK 135 N 1200, 1600 100 900 135/85 0,59 IP2
TD B6HK 165 N 1200, 1600 120 1200 165/85 0,49 IP2
TD B6HK 205 N 1200, 1600 120 1375 205/85 0,41 IP2
MOSTKI TRÓJFAZOWE FIRMY EUPEC schemat TT B6C TT B6C 95 N 1200, 1600 75 620 95/85 0,82 IP2
TT B6C 135 N 1200, 1600 100 900 135/85 0,59 IP2
TT B6C 165 N 1200, 1600 120 1200 165/85 0,49 IP2

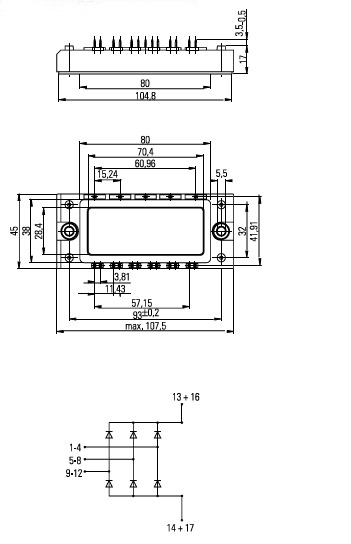

Casing - EC1
MOSTKI TRÓJFAZOWE FIRMY EUPEC Casing EC1

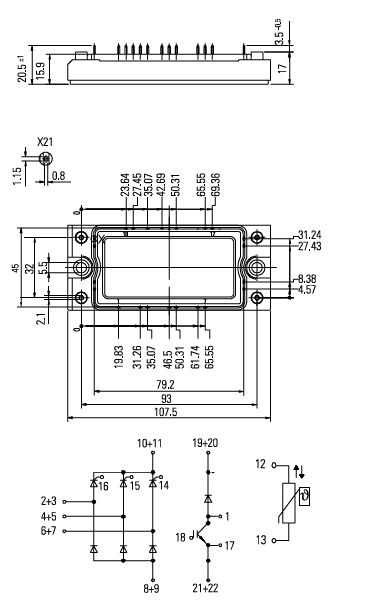

Casing - EC3
MOSTKI TRÓJFAZOWE FIRMY EUPEC Casing EC3

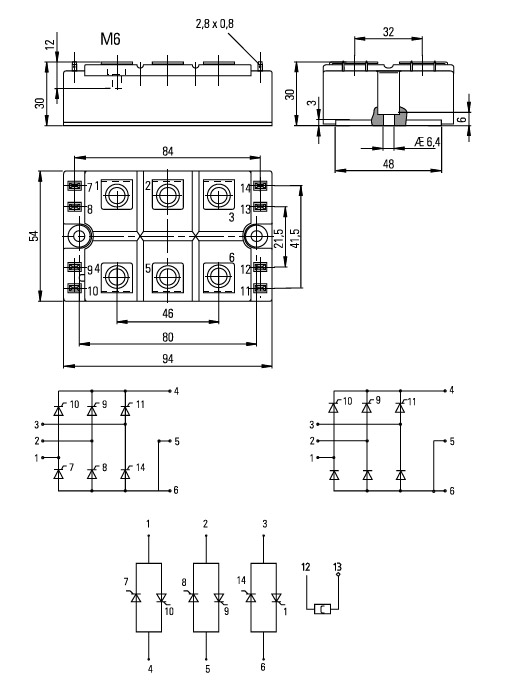

Casing - IP1
MOSTKI TRÓJFAZOWE FIRMY EUPEC Casing IP!

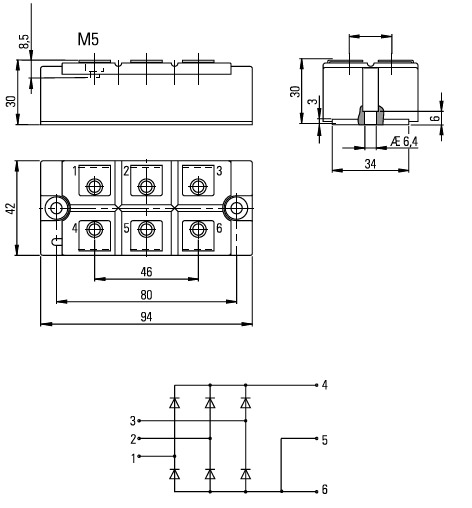

Casing - IP2
MOSTKI TRÓJFAZOWE FIRMY EUPEC Casing IP2

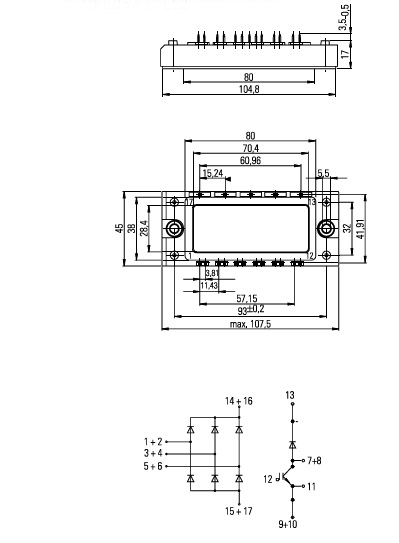

Casing - EC2
MOSTKI TRÓJFAZOWE FIRMY EUPEC Casing EC2

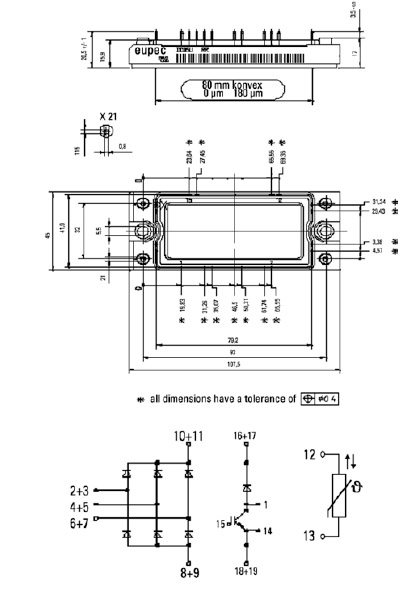

Casing - EC4
Casing EC4
