PM67 SERIES

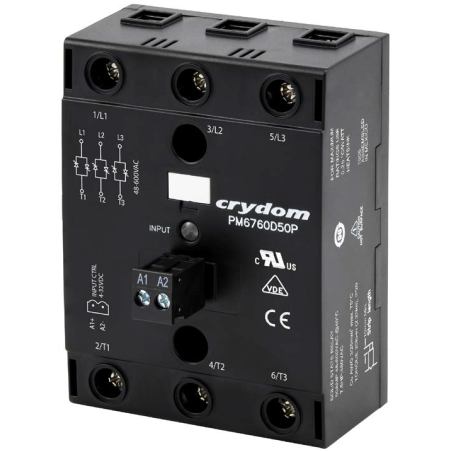

PM67 is a compact, three-phase solid-state relay (SSR) in a 67.5 mm wide panel-mount housing with an output range of up to 75 amperes at 40 degrees Celsius per channel. Its built-in overvoltage protection and optional overtemperature protection make it suitable for applications requiring heating, motion, and lighting. It is easy to install, and its terminal layout allows for wire connections up to 33.63 mm² on the output without using any additional accessories, making it truly ready-to-use devices, resulting in reduced cost and installation time. Listed by UL and certified by VDE, PM67 is a robust and versatile solid-state relay with improved performance compared to previous generations and competitive products.

Features

  • Three-phase panel-mount SSR
  • Output ranges up to 75 amperes at 600 VAC
  • Option for two and three control terminals
  • Overtemperature protection with optional alarm
  • Built-in overvoltage protection
  • Terminal block-shaped input compatible with wires up to 33.63 mm2
  • Mounting hole layout compatible with standard hockey-puck SSRs
  • Touch-safe IP20 enclosure
  • AC or DC control
  • Approved by cURus and VDE

Applications

  • Plastic injection molding equipment
  • Packaging machinery
  • Industrial ovens
  • Lighting control
  • Professional cooking appliances
  • Pump control
  • Conveyor drives
  • HVAC&R (Heating, Ventilation, Air Conditioning, and Refrigeration)

Product Selection

Control Voltage 25A 30A 50A 55A 60A 75A
4-32 VDC PM6760D25P PM6760D30P PM6760D50P PM6760D55P PM6760D60P PM6760D75P
90-280 VAC/VDC PM6760A25P PM6760A30P PM6760A50P PM6760A55P PM6760A60P PM6760A75P


Ordering Options

Family
Operating Voltage
60 = 48-600 VAC
Control Voltage
D = 4-32 VDC (4-28 VDC for TA option)A = 90-280 VAC/VDC
Rated Load Current
25 = 25A, 3-pin55 = 55A, 2-pin30 = 30A, 2-pin60 = 60A, 3-pin50 = 50A, 3-pin75 = 75A, 2-pin
Blank: Zero-voltage switchingR: Instant-on switching
Overvoltage Protection
P = Built-in overvoltage protection
Overtemperature Protection
Blank = No overtemperature protectionTA = Overtemperature protection with output alarm


Required for a valid part number
Optional and not required for a valid part number

Specifications

Output

Description 25A 30A 50A 55A 60A 75A
Operating Voltage (47-440Hz) [Vrms] 48-600 48-600 48-600 48-600 48-600 48-600
Transient Overvoltage [Vpk] 1200 1200 1200 1200 1200 1200
Maximum leakage current at rated voltage [mArms] 1 1 1 1 1 1
Minimum dV/dt when switched off at maximum rated voltage [V/usec] 500 500 500 500 500 500
Load current, general application UL508/LC and IEC62314 at 40 degrees Celsius [Arms] 25 30 50 55 60 75
Load current, motor starting UL508 FLA/LC and IEC62314 at 40 degrees Celsius [Arms] 6.4/3.9 6.4/3.9 12/6.8 12/6.8 21/17.6 21/17.6
Minimum load current [mArms] 100 100 100 100 150 150
Maximum single pulse current amplitude (50/60Hz) [Apk] 286/300 286/300 716/750 716/750 1290/1350 1290/1350
Maximum voltage drop during operation at rated current [Vrms] 1.25 1.3 1.25 1.3 1.15 1.2
Maximum I2t for operation (½ cycle) (50/60Hz) [A2sec] 409/375 409/375 2563/2343 2563/2343 8320/7593 8320/7593
Minimum power factor (at maximum load) 0.5 0.5 0.5 0.5 0.5 0.5
Motor Parameters UL 508: 120 VAC / 240 VAC / 480 VAC [HP] 0.5/1.0/3.0 0.75/1.0/3.0 1.5/3.0/7.5 1.5/3.0/7.5 3.0/5.0/15.0 3.0/5.0/15.0
Motor Parameters IEC62314: 240 VAC / 400 VAC / 500 VAC [kW] 0.75/1.5/2.2 0.75/1.5/2.2 1.5/3.0/4.0 1.5/3.0/4.0 4.0/7.5/11.0 4.0/7.5/11.0


Input

Description PM6760Dxxx PM6760Axxx
Without TA option With TA option Without TA option With TA option
Control Voltage Range 4-32 VDC 4-28 VDC 90-280 VAC/VDC
Maximum Reverse Voltage -32 VDC -
Minimum Turn-On Voltage 4 VDC 90 VAC/VDC
Required Turn-Off Voltage 1 VDC 5 VAC/VDC
Minimum Input Current (for Turn-On) 25 mA 20 mA 1 mA 1 mA
Maximum Input Current 40 mA 50 mA 4 mA 8 mA
Rated Input Impedance Current Limited Switching Mode
Maximum Turn-On Time [msec] ½ cycle 10
Maximum Turn-Off Time [msec] ½ cycle 20


Alarm

Description Switching Mode PM6760Axxx
Output Type Solid-state Solid-state
Maximum Output Voltage 60 VDC 400 VDC / 265 VAC
Maximum Alarm Output Current [mA] 60 60


General

Description Parameters
Dielectric Strength, Input to Output (50/60Hz) 4000 Vrms
Dielectric Strength, Input/Output to Housing (50/60Hz) 4000 Vrms
Minimum Insulation Resistance (at 500V DC) 109 Ohms
Maximum Capacitance, Input/Output 25pF
Ambient Temperature Range for Operation -40 to 80 degrees Celsius
Ambient Temperature Range for Storage -40 to 100 degrees Celsius
Rated Short-Circuit Current 100kA
Weight (typical) 190g
Housing Material UL94 V-0
Heatsink Material Aluminium
Mounting Material for DIN Rail Galvanized Steel
Internal Finish Nickel Plating
Input Terminal Screw Torque (Nm) 0.5
Load Terminal Screw Torque Range (Nm) 2.0-2.2
Humidity per IEC 60068-2-78 93% non-condensing
LED Status Indicator See status chart
Overvoltage Category III
Impulse Withstand Voltage per IEC 60664-1 6kV
