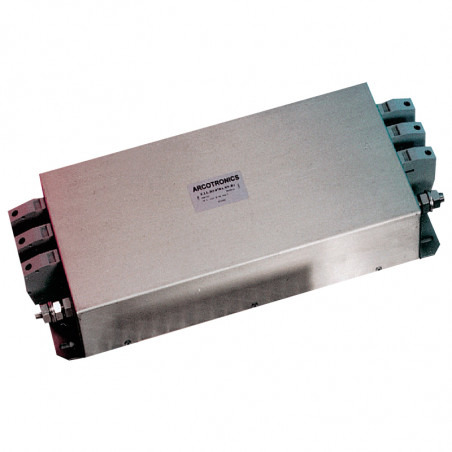

Three phase filters - F.LL.D3 ***A.AN/HN*1 series
  • Three phase filters - F.LL.D3 ***A.AN/HN*1 series

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Arcotronics

Three phase filters - F.LL.D3 ***A.AN/HN*1 series

Electrical data

Nominal voltage (UR): AN: 440V; 50/60HZ
HN: 520V; 50/60HZ
Nominal current (IN): at ambient temperature 40°C
Leakage current (IL): maximum value at UN/√3, 50Hz
Voltage test (2s): line - ground 8 -16A - 3000 VDC
line - ground 25 - 450A - 2250 VDC
Climatic category: HPF (25/85/21)
Temperature range: -25°C - 85°C

Type IN
40°C
[A]		 Leakage current
IL
440V		 Capacity line - line Capacity line - ground Line inductance
[mH]		 Resistance Line resistance
[mΩ]		 Scheme
F.LLD3.008A.‘-’N.I1 8 18mA 3x2,2µF(X2)IV1KT + 3x10nF(Y2)+3x47nF(Y2) 3x7,6 3x10Ω < 38 A
F.LLD3.008A.‘-’N.R1     3x1,0µF((X2)IV1KT
F.LL.D3.016A.‘-’N.I1 16 18mA 3x4,4µF(X2)MKT+ 3x10nF(Y2)+3x47nF(Y2) 3x5,2 3x1MΩ < 10 A
F.LL.D3.016A.‘-’N.R1     3x2,2µF(X2)MKT
F.LL.D3.025A.‘-’N.I1 25 205mA 3x4,4µ F(X2)MKT+ 3x10nF(Y2)+2x1µF(Y2) + 3x2,2 6x1,5MΩ+ < 4,3 B
F.LLD3.025A.‘-’N.R1     3x4,4 µF(X2)MKT 3x94nF(Y2)   2x680kΩ
F.LL.D3.036A.‘-’N.I1 36 205mA 3x4,4 µ F(X2)MKT+ 3x10nF(Y2)+2x1µF(Y2) + 3x1,3 6x1,5MΩ+ < 2,4 B
F.LL.D3.036A.‘-’N.R1     3x4,4µF(X2)MKT 3x94nF(Y2)   2x680kΩ
F.LL.D3.050A.‘-’N.I1 50 205mA 3x4,4 µ F(X2)MKT+ 3x10nF(Y2)+2x1µF(Y2)+ 3x0,8 6x1,5MΩ+ < 1,5 B
F.LL.D3.050A.‘-’N.R1 |   3x4,4µF(X2)MKT 3x94nF(Y2)   2x680kΩ
F.LLD3.080A.‘-’N.I1 80 235mA 3x6,7µF(X2)MKT+ 3x94nF(Y2)+2x1µF(Y2)+ 3x0,9 6x1,5MΩ+ < 1,2 B
F.LL.D3.080A.‘-’N.R1 H   3x6,7µF(X2)MKT 3x94nF(Y2)   2x680kΩ
F.LL.D3.110A.‘-’N.I1 110 235mA 3x6,7µF(X2)MKT+ 3x94nF(Y2)+2x1µF(Y2)+ 3x0,5 6x1,5MΩ+ < 0,7 B
F.LL.D3.110A.‘-’N.R1     3x6,7µF(X2)MKT 3x94nF(Y2)   2x680kO
F.LL.D3.180A.‘-’N.R1 180 235mA 3x5µF(X2)MKT+ 3x94nF(Y2)+2x1µF(Y2)+ 3x0,5 6x1,5MΩ+ < 0,5 B
      3x5µF(X2)MKT 3x94nF(Y2)   2x680kΩ
F.LLD3.280A.‘-’N.R1 280 370mA 3x10µF(X2)MKT+ 3x282nF(Y2)+2x1µF(Y2)+ 3x0,31 6x1,5MΩ+ < 0,3 B
      3x10µF(X2)MKT 3x282nF(Y2)   2x680kΩ
F.LLD3.450A.‘-’N.R1* 450 370mA 3x10µF(X2)MKT+ 3x282nF(Y2)+2x1µF(Y2)+ 3x0,075 6x1,5MΩ+ < 0,25 B
      3x10µF(X2)MKT 3x282nF(Y2)   2x680kΩ

Caution
Marking: F.LL.03.450A.AN.R1
‘-’ = A : 440Vac
H : 520Vac

Scheme A
FILTRY TRÓJFAZOWE SERIA F.LL.D3 ***A.AN/HN*1 Scheme a		 Scheme B
FILTRY TRÓJFAZOWE SERIA F.LL.D3 ***A.AN/HN*1 Scheme b

Dimensions [mm] and terminals

Casing R
FILTRY TRÓJFAZOWE SERIA F.LL.D3 ***A.AN/HN*1 Casing R		 Casing S
FILTRY TRÓJFAZOWE SERIA F.LL.D3 ***A.AN/HN*1 Casing S
Casing T
FILTRY TRÓJFAZOWE SERIA F.LL.D3 ***A.AN/HN*1 Casing T		 Casing U
FILTRY TRÓJFAZOWE SERIA F.LL.D3 ***A.AN/HN*1 Casing U
Casing V
FILTRY TRÓJFAZOWE SERIA F.LL.D3 ***A.AN/HN*1 Casing V		 Casing W
FILTRY TRÓJFAZOWE SERIA F.LL.D3 ***A.AN/HN*1 Casing W

Type Dimensions Casing
A
[mm]		 B
[mm]		 C
[mm]		 D
[mm]		 E
[mm]		 F
[mm]		 G
[mm]		 H
[mm]		 J
[mm]		 K
[mm]		 L
[mm]		 M
[mm]		 N
[mm]
F.LLD3.008A.‘-’N.I1 180 115 60 85 115 100 20 15 15 210 17 30 - R M4
F.LLD3.008A.‘-’N.R1 180 115 60 85 115 100 20 19,5 10 210 17 - - S 4mm2
F.LLD3.016A.‘-’N.I1 200 150 65 120 115 135 15 30 30 230 17 30 - R M4
F.LL.D3.016A.‘-’N.R1 200 150 65 120 115 135 15 31 10 230 17 - - S 4mm2
F.LLD3.025A.‘-’N.I1 200 150 65 120 115 135 15 30 30 250 17 30 - R M6
F.LLD3.025A.‘-’N.R1 200 150 65 120 115 135 15 21 20 250 17 - - U 10mm2
F.LLD3.036A.‘-’N.I1 200 150 65 120 115 135 15 30 30 250 17 30 - R M6
F.LL.D3.036A.‘-’N.R1 200 150 65 120 115 135 15 21 20 250 17 - - U 10mm2
F.LLD3.050A.‘-’N.I1 200 150 65 120 115 135 15 30 30 250 17 30 - R M6
F.LL.D3.050A.‘-’N.R1 200 150 65 120 115 135 15 21 20 250 17 - - U 10mm2
F.LLD3.080A.‘-’N.I1 350 170 90 170 375 130 37,5 35 30 420 46 70 400 T M10
F.LL.D3.080A.‘-’N.R1 350 170 90 170 375 130 37,5 35 30 427 46 70 400 W 25mm2
F.LLD3.110A.‘-’N.I1 350 170 90 170 375 130 35 36 32 420 44 70 400 T M10
F.LL.D3.110A.‘-’N.R1 350 170 90 170 375 130 35 36 32 436 44 70 400 T 50mm2
F.LL.D3.180A.‘-’N.R1 300 180 128 140 470 156 15 28 25 537 38 88 510 V 95mm2
F.LLD3.280A.‘-’N.R1 450 260 153 220 660 220 51 28 31 742 47 103 700 V 150mm2
F.LL.D3.450A.‘-’N.R1 450 260 153 220 660 220 51 28 31 742 47 103 700 V 240mm2

Caution
`-` = A: 440VAC, H:520VAC

................... - symmetrical (line-line)
___________ - asymmetrical (line-ground)
