Three phase filters F.LL.D3 SC series

Nominal voltage (UN): 520VAC; 50/60Hz
Nominal current(IN): at ambient temperature 40°C
Leakage current (IL): 82mA (1 phase operation)
Voltage test (2s) line - ground 3470 VDC
line - line 1700 VDC
Temperature range -25°C - 100°C
Climatic category: HMF (25/100/21)

Dimensions [mm] and terminals

Typ 8A 16A 30A 42A 55A 75A 100A 130A
A 255 305 335 329 329 329 379 439
B 126 142 150 185 185 220 220 240
C 50 55 60 70 80 80 90 110
D 225 275 305 300 300 300 350 400
E 240 290 320 314 314 314 364 414
F 25 30 35 45 55 55 65 80
G 6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.5
H 300 300 400 500 500
J 2 2 2 3 3 3 3 6
L 9 9 9 12 12
O M5 M5 M5 M6 M6 M6 M10 M10
P* 16 14 10 8 6
Caution
* = AWG sizes, tri-rated cable
Type LR
[A]		 L
[mH]		 Cx
[µF]		 Cy
[µF]		 R
[mΩ]		 Circ
Diag

F.LL.D3.008A.SC. *1

 8 0.5 9x1 6x110 3x0.33 + 1x0.62 A

F.LL.D3.016A.SC. *1

 16 0.5 9x1 6x110 3x0.33 + 1x0.62 A

F.LL.D3.030A.SC. *1

 30 0.5 9x1 6x110 3x0.33 + 1x0.62 A

F.LL.D3.055A.SC. *1

 55 0.27 9x2.2 6x110 3x0.33 + 1x0.62 B

F.LL.D3.075A.SC.R1

 75 0.27 9x2.2 6x110 3x0.33 + 1x0.62 B

F.LL.D3.100A.SC.R1

 100 0.27 9x2.2 6x110 3x0.33 + 1x0.62 B

F.LL.D3.130A.SC.R1

 130 0.27 3x1.5 + 6x3.7 6x110 3x0.33 + 1x0.62 C
! Caution
* = R - Safety Terminal Block or W - Output Cable
Scheme
rys

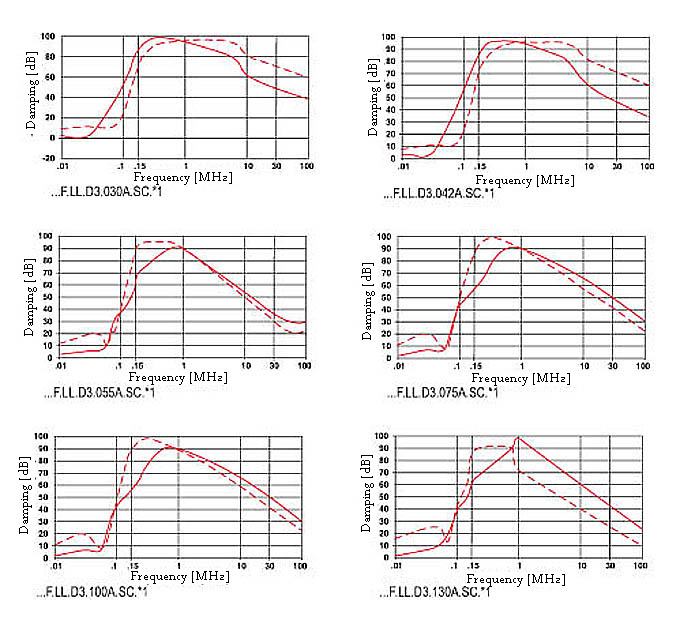

Characteristics - damping
rys
rys
Casing
