Thyristor module - M2T..W

One element power thyristor block with water radiator.

Properties:
• One element power thyristor block with both side cooling– RY
• Water cooling

Typical applications:
• rectifiers, converters, supplies.
• DC power regulators
• power contactors
• soft-starts

Option:
• assembled on clamp K-1 – Drawing. 1
• assembled on clamp K-2 special execution.– Drawing. 2
• assembled on clamp K-5 special execution.– Drawing. 3
• Thermal protection
• RC circuit
• fuse


Power block selection:
• There are different semiconductors used, depending on the load. Used semiconductor size is given in the Table 1.
Operation conditions:
One element power blocks are used in power electronic systems.
• cooling water temperature 50 C - 300 C @ ambient temperature > -100 C
• Atmospheric pressure 860hPa do 1060hPa

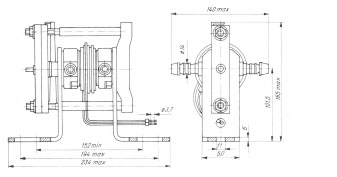

Drawing 1
Drawing 2
Drawing 3


Scheme



Table 1 Power blocks parameters


Module type Mean current IF(AV) [A] Blocking voltage U RRM
    [V]		 Over current
I FSM
[A]		 Semiconductor size
[mm]		 Block weight
[kg]
M2T75W 650…960 400…2200 8000… 12000 1,4
M2T7W 450…650 400…2400 7000…10000 1,6
M2T8W 630…1000 400…8500 10000…24000 1,6
M2T9W 1000…2000 400…7500 20000…42000 3,2
M2T11W 1000…3200 400…7200 27000…65000 9,8


Power block scheme M2T...M
