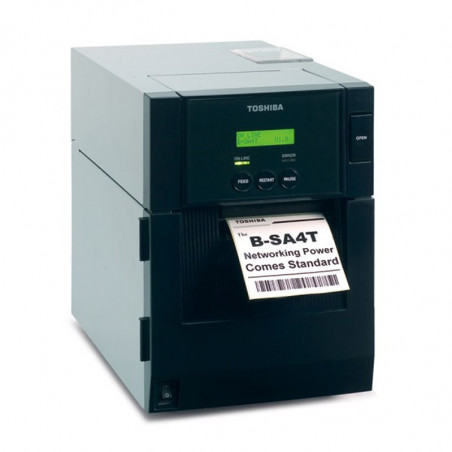

Industrial printer B-SA4TM
  • Industrial printer B-SA4TM
  • Industrial printer B-SA4TM
  • Industrial printer B-SA4TM
  • Industrial printer B-SA4TM
  • Industrial printer B-SA4TM

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: TOSHIBA TEC Poland

Industrial printer B-SA4TM

Industrial Printer B-SA4TM

Technical Specifications
Print Technology Thermal and Thermal Transfer
Print Head Type Flat
Print Width From 23 to 104 mm for 203 dpi resolution
From 23 to 105.7 mm for 300 dpi resolution
Print Length From 13 to 997 mm
Label Backing Width 118 mm
Resolution 203 dpi or 300 dpi
Print Speed Up to 152.4 mm/sec.
Memory Capacity 16 MB DRAM, 16 MB Flash
Supported Barcodes UPC/EAN/JAN, Code 39, Code 93, Code 128 UCC, Code 128, NW7, MSI, Industrial 2 of 5, ITF, Postnet, RM4SCC, KIX-code, RSS14 Customer Bar Code
Supported 2D Codes Data Matrix, PDF 417, Maxicode, QR Code, Micro PDF 417, CP Code
Interfaces Bidirectional LPT Port, USB 2.0, LAN 10/100
Dimensions 238 (W) x 332 (H) x 402 (D) mm
Additional Options Cutter, Label Peeler Module, WLAN Card, Serial Port, RFID Module, Binary Logic Port, 300 dpi Print Head, Real Time Clock
Weight 15 kg (excluding labels and ribbon)
Consumables
Inner Diameter of Paper Roll 38 - 76.2 mm
Outer Diameter of Paper Roll 200 mm (capable of using outside and inside wound rolls)
Label Thickness 0.08 - 0.17 (wide label)
0.08 - 0.26 (narrow label)
Thermal Transfer Ribbon Length Max. 450 m



B-SA4TM
Industrial Thermal and Thermal Transfer Printer
Model Description Print Resolution
(dpi)		 Max.
Print Speed
(mm/s)		 Max.
Print Width
(mm)		 LPT USB LAN
B-SA4TM-GS12-QM-R 203 dpi Print Head 203 104 105.7 V V V
B-SA4TM-TS12-QM-R 305 dpi Print Head 305 152.4 105.7 V V V
B-SA4TM Options
B-SA204P-QM-R Cutter
B-SA904P-H-QM-R Label Peeler Module
B-SA704-RS-QM-R Serial Port
B-SA704-WLAN-QM-R WLAN Card
B-SA704-IO-QM-R Binary Logic Module
B-SA704-TPH3-QM-R 300 dpi Print Head
B-SA704-RFID-U1-EU-R RFID Module (868 MHz) - Coming Soon
B-SA704-RFID-H1-QM-R RFID Module (13.56 MHz) - Coming Soon
B-SA704-RTC-QM-R Real Time Clock
Spare Parts for B-SA4TM
7FM00973000 203 dpi Print Head
7FM00973100 305 dpi Print Head
Spare Parts for B-SA4TM
7FM00973000 203 dpi Print Head
7FM00973100 305 dpi Print Head
