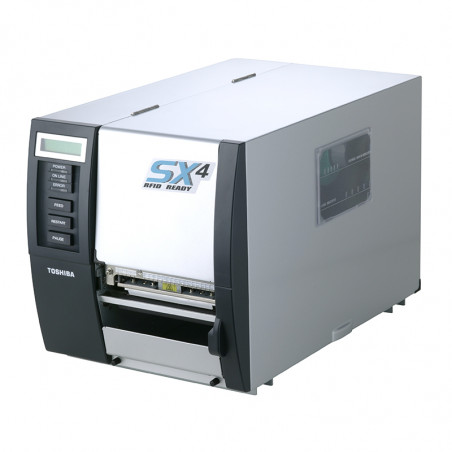

Industrial printer B-SX4
  • Industrial printer B-SX4

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: TOSHIBA TEC Poland

Industrial printer B-SX4

Industrial Printer B-SX4

Technical Specifications
Print Technology Thermal and Thermal Transfer Printing
Print Head Type Edge Type
Print Width From 27 to 104 mm
Print Length From 6 to 1498 mm
Label Backing Width 112 mm
Resolution 203 dpi
Print Speed Up to 254 mm/sec
Memory Capacity 8 MB SDRAM, 4 MB Flash
Supported Barcodes UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, MSI, Industrial 2 of 5, ITF, Postnet, RM4SCC, KIX-Code, RSS14
Supported 2D Codes Data Matrix, PDF 417, Maxicode, QR Code, Micro PDF 417, CP Code
Interfaces Serial Port, Bidirectional LPT Port
Dimensions 291 (W) x 308 (H) x 460 (D) mm
Additional Options Standard Cutter, Rotary Cutter, Label Peeler and Rewinder, PCMCIA Module, LAN 10/100 Card, USB 1.1, RFID Module, Ribbon Saver Module, Binary Logic Port
Weight 18 kg (excluding labels and ribbon)
Consumables
Inner Diameter of Paper Roll 76.2 mm
Outer Diameter of Paper Roll 200 mm (supports external and internal roll winding)
Label Thickness 0.13 - 0.29 mm
Thermal Transfer Ribbon Length Max. 600 m



B-SX4
Industrial Thermal and Thermal Transfer Printer
Model Description Print Resolution
(dpi)		 Max.
Print Speed
(mm/s)		 Max.
Print Width
(mm)		 RS Port LAN
B-SX4T-GS20-QM-R Standard Version 305 203 127.5 V V
B-SX4 Options
B-4205-QM-R Standard Cutter
B-8204-QM-R Rotary Cutter
B-7704-IO-QM-R Binary Logic Port
B-9700-PCM-QM-R PCMCIA Module
B-9700-LAN-QM-R LAN 10/100 Card
B-9700-USB-QM-R USB 1.1 Port
B-9700-WLAN-QM-R WiFi Card
B-9904-R2-QM-R Ribbon Saver Module
B-9904-H-QM-R Label Peeler Module
B-LAN-01 PCMCIA LAN Card (PCMCIA module required)
B-ATA-32 ATA 32MB Card (PCMCIA module required)
B-9405-ST Automatic Label Applicator
Cover Stacker B-4205 Standard Cutter Cover for Label Applicator
Cover Stacker B-8204 Rotary Cutter Cover for Label Applicator
RFID-KIT HF RFID HF Module with Antenna (13.56 MHz)
B-9704-RFID-U1-EU-R UHF RFID Module with Antenna (868 MHz)
Spare Parts for B-SX4
7FM01641100 Print Head
