Manufacturer: TOSHIBA TEC Poland

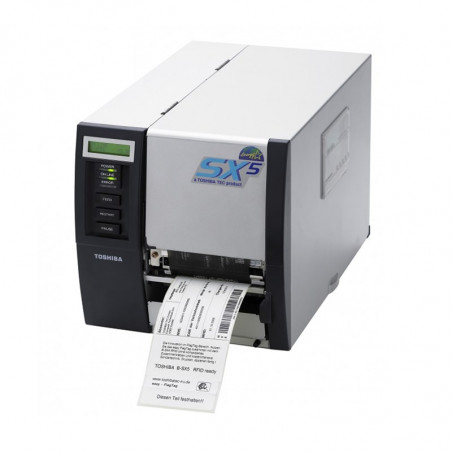

Industrial printer B-SX5

B-SX5 Industrial Printer

Technical Specifications
Print Technology
Thermal and thermal transfer printing
Print Head Type
Edge type
Print Width
From 27 to 127.5 mm
Print Length
From 6 to 1498 mm
Label Backing Width
140 mm
Resolution
305 dpi
Print Speed
Up to 203 mm/s
Memory Capacity
16 MB SDRAM, 4 MB Flash
Supported Barcodes
UPC/EAN/JAN, Code 39, Code 93, Code 128, EAN 128, NW7, MSI,
Industrial 2 of 5, ITF, Postnet, RM4SCC, KIX-Code, RSS14
Supported 2D Codes
Data Matrix, PDF 417, Maxicode, Micro PDF 417, QR Code
Interfaces
Serial port, LPT port, binary logic module
Dimensions
291 (W) x 308 (H) x 460 (D) mm
Additional Options
Standard knife, rotary knife, PCMCIA module, LAN 10/100 card, USB 1.1,
RFID module
Weight
18 kg (excluding labels and ribbon)
Consumables
Inner Diameter of Paper Roll
76.2 mm
Outer Diameter of Paper Roll
200 mm (can use both outer and inner wound rolls)
Label Thickness
0.13 - 0.29 mm
Thermal Transfer Ribbon Length
Max. 600 m


B-SX5
Industrial Thermal and Thermal Transfer Printer
Model Description Print Resolution
(dpi)		 Max.
Print Speed
(mm/s)		 Max.
Print Width
(mm)		 RS
Port		 LAN
B-SX5T-TS22-QM-R
Basic version
 305 203 127.5 Yes Yes
B-SX5 Options
B-4205-QM-R
Standard knife
B-8204-QM-R
Rotary knife
B-7704-IO-QM-R
Binary logic port (standard equipment)
B-9700-PCM-QM-R
PCMCIA module
B-9700-LAN-QM-R
LAN 10/100 card
B-9700-USB-QM-R
USB 1.1 port
B-9700-WLAN-QM-R
WiFi card
B-9904-R2-QM-R
Ribbon saving module (standard equipment)
B-9904-H-QM-R
Label peeling module (standard equipment)
B-LAN-01
PCMCIA LAN card (PCMCIA module required)
B-ATA-32
ATA 32MB card (PCMCIA module required)
B-9405-ST
Automatic label applicator
Cover Stacker B-4205
Standard knife cover for label applicator
Cover Stacker B-8204
Rotary knife cover for label applicator
RFID-KIT HF
RFID HF module with antenna (13.56 MHz)
B-9704-RFID-U1-EU-R
UHF RFID module with antenna (868 MHz)
Spare Parts for B-SX5
7FM01641100
Print head

Less
