Manufacturer: TOSHIBA TEC Poland

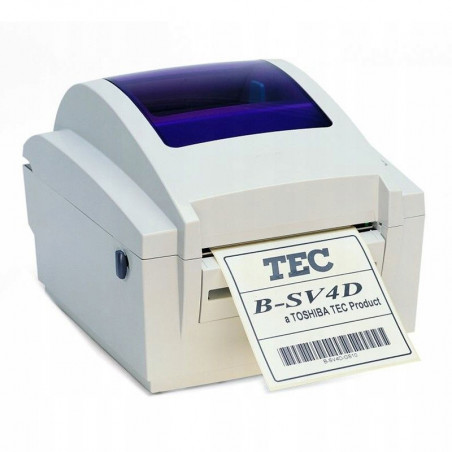

Office printer B-SV4D

Office printer B-SV4D

Technical Specifications
Printing Technology Thermal Printing
Print Head Type Flat
Print Width From 13 to 108 mm
Print Length From 10 to 609.6 mm
Label Backing Width 112 mm
Resolution 203 dpi
Print Speed Up to 127 mm/sec
Memory Capacity 2 MB DRAM, 1 MB Flash
Supported Barcodes Code 39, Code 39C, Code 93, Code 128 UCC, Code 128, Code 11, Codebar, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) MSI, ITF, Plessey, Postnet, RSS
Supported 2D Codes Data Matrix, PDF 417, Maxicode, QR Code, Micro PDF 417
Interfaces Serial Port, LPT, USB 1.1
Dimensions 200 (W) x 169 (H) x 230 (D) mm
Optional Features Cutter - partial cut, Cutter - full cut, Memory, Label Peeler Module, External LAN Port
Weight 2 kg (excluding labels and ribbon)
Consumables
Internal Paper Roll Diameter 25.4 - 76.2 mm
External Paper Roll Diameter 127 mm / 214 mm with external label dispenser (capable of using roll wound outside and inside)
Label Thickness 0.06 - 0.19



B-SV4D
Office Thermal Printer
Model Description Print Resolution
(dpi)		 Max.
Print Speed
(mm/s)		 Max.
Print Width
(mm)		 RS Port LPT USB LAN
B-SV4D-GS10-QM-R Basic Version 203 127 108 V V V
B-SV4D-GS12-QM-R Version with Printserver 203 127 108 V V V
B-SV4D-GC10-QM-R Version with Cutter 203 127 108 V V V
B-SV4D Options
B-SV704-LAN-QP-R Printserver for LPT port
B-SV904-PH-QM-R External Label Dispenser
B-SV404-QM-R Cutter - Full Cut
B-SV204-QM-R Cutter - Partial Cut
B-SV904-H-QM-R Label Peeler Module
BP-2000-R Battery
B-SV704-E1M-QM 1MB Memory Module
B-SV704-E2M-QM 2MB Memory Module
B-SV704-E3M-QM 4MB Memory Module
B-SV704-E6M-QM 6MB Memory Module
B-SV704-E8M-QM 8MB Memory Module
Spare Parts for B-SV4D
FMYC0003602 Print Head
