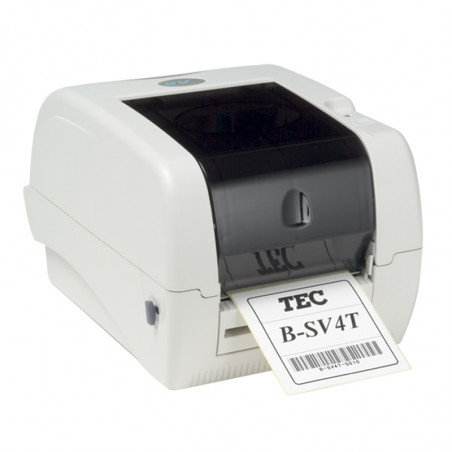

Office printer B-SV4T
  • Office printer B-SV4T

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: TOSHIBA TEC Poland

Office printer B-SV4T

Technical Data
Printing Technology Thermal Printing
Print Head Type Flat
Print Width From 22.4 to 108 mm
Print Length From 10 to 609.6 mm
Label Backing Width 112 mm
Resolution 203 dpi
Print Speed Up to 127 mm/sec.
Memory Capacity 2 MB DRAM, 1 MB Flash
Supported Barcodes Code 39, Code 39C, Code 93, Code 128 UCC, Code 128, Code 11, Codebar, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) MSI, ITF, Plessey, Postnet, RSS
Supported 2D Codes Data Matrix, PDF 417, Maxicode, QR Code, Micro PDF 417
Interfaces Serial Port, LPT, USB 1.1
Dimensions 314 (W) x 188 (H) x 213 (D) mm
Optional Features Cutter - partial cut, cutter - full cut, memory, label peeler module, external LAN port
Weight 2.8 kg (excluding labels and ribbon)
Consumables
Inner Diameter of Paper Roll 25.4 - 76.2 mm
Outer Diameter of Paper Roll 127 mm / 214 mm with external label dispenser (supports external and internal wound rolls)
Label Thickness 0.06 - 0.19
Thermal Transfer Ribbon Length Max. 300 m



B-SV4T
Industrial Thermal and Thermal Transfer Printer
Model Description Print Resolution (dpi) Max. Print Speed (mm/s) Max. Print Width (mm) LPT USB LAN
B-SV4T-GS10-QM-R Basic Version 203 127 108 V V V
B-SV4T Options
B-SV704-LAN-QP-R Printserver connected to LPT port
B-SV904-PH-QM-R External Label Dispenser
B-SV404-QM-R Cutter - Full Cut
B-SV204-QM-R Cutter - Partial Cut
B-SV404-H-QM-R Label Peeler Module
BP-2000-R Battery
B-SV704-E1M-QM 1MB Memory Module
B-SV704-E2M-QM 2MB Memory Module
B-SV704-E3M-QM 4MB Memory Module
B-SV704-E6M-QM 6MB Memory Module
B-SV704-E8M-QM 8MB Memory Module
Spare Parts for B-SV4T
7FM02684000 Print Head
