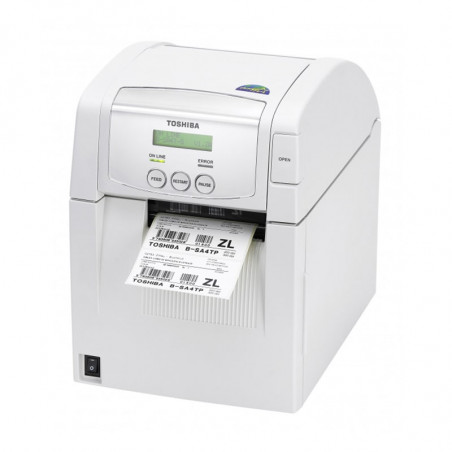

Semi-industrial printer B-SA4TP
  • Semi-industrial printer B-SA4TP
  • Semi-industrial printer B-SA4TP
  • Semi-industrial printer B-SA4TP
  • Semi-industrial printer B-SA4TP

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: TOSHIBA TEC Poland

Semi-industrial printer B-SA4TP

Semi-industrial printer B-SA4TP

Technical data
Printing technology Thermal printing
Type of print head Flat
Print width From 13 to 108 mm
Print length From 10 to 609.6 mm
Label backing width 112 mm
Resolution 203 dpi
Printing speed Up to 127 mm/sec
Memory capacity 2 MB DRAM, 1 MB Flash
Supported barcodes Code 39, Code 39C, Code 93, Code 128 UCC, Code 128, Code 11, Codebar, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) MSI, ITF, Plessey, Postnet, RSS
Supported 2D codes Data Matrix, PDF 417, Maxicode, QR Code, Micro PDF 417
Interfaces Serial port, LPT, USB 1.1
Dimensions 200 (width) x 169 (height) x 230 (depth) mm
Optional accessories Knife - partial cut, knife - full cut, memory, label peeling module, external LAN port
Weight 2 kg (excluding labels and ribbon)
Consumables
Internal roll diameter 25.4 - 76.2 mm
External roll diameter 127 mm / 214 mm when using an external label feeder (can use both inside and outside wound rolls)
Label thickness 0.06 - 0.19



B-SA4TP
Industrial thermal and thermal transfer printer
Model Description Print resolution (dpi) Max. printing speed (mm/s) Max. print width (mm) LPT USB LAN
B-SA4TP-GS12-QM-R 203 dpi head 203 104 105.7 V V V
B-SA4TP-TS12-QM-R 305 dpi head 305 152.4 105.7 V V V
B-SA4TP options
B-SA204P-QM-R Knife
B-SA904P-H-QM-R Label peeling module
B-SA704-RS-QM-R Serial port
B-SA704-WLAN-QM-R WLAN card
B-SA704-IO-QM-R Binary logic module
B-SA704-TPH3-QM-R 300 dpi head
B-SA704-RFID-U1-EU-R RFID module (868 MHz) - under preparation
B-SA704-RFID-H1-QM-R RFID module (13.56 MHz) - under preparation
B-SA704-RTC-QM-R Real-time clock
B-SA4TP spare parts
7FM00973000 203 dpi head
7FM00973100 305 dpi head
