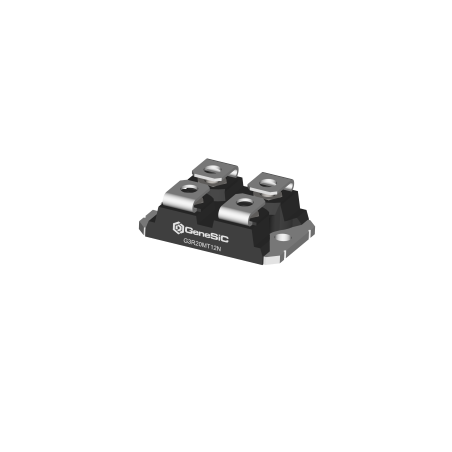

G3R20MT12N SiC MOSFET transistor
  • G3R20MT12N SiC MOSFET transistor

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: GeneSiC Semiconductor

G3R20MT12N SiC MOSFET transistor

  • G3R20MT12N
  • Housing type SOT-227
  • Continous current ID at Tc=25oC 90 A
  • Continous current ID at Tc=100oC 64 A
  • RDS(ON) for VGS = 18 V 17 mΩ
  • RDS(ON) for VGS = 15 V 20 mΩ
  • Voltage UDS 1200 V

The "G3R20MT12N" SiC MOSFET transistor is made using GeneSiC's patented Trench-Assisted Planar technology.

Features:

  • Low Temperature Coefficient of RDS(ON)
  • Lower QG and Smaller RG(INT)
  • Low Device Capacitances (COSS, CRSS)
  • LoRing – Electromagnetically Optimazed Design
  • Robust Body Diode with Low VF and Low QRR
  • 100% Avalanche (UIL) Tested

Applications:

  • Solar Inverters
  • EV/HEV Charging
  • Motor Drives
  • High Voltage DC-DC Converters
  • Switched Mode Power Supplies
  • UPS
  • Smart Grid Transmission and Distribution
  • Induction Heating and Welding
Less
Read more
259.04 PLN
259.04 PLN Gross price / pcs.
210.60 PLN Net price / pc.
Tax included

Availability: Please be advised that this product is out of stock

You can place a pre-order, report your interest in the product by clicking the "Ask for availability" button.

Out of stock
