Manufacturer: GeneSiC Semiconductor

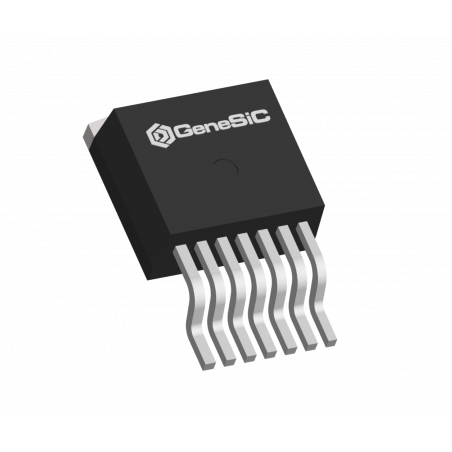

G3R60MT07J SiC MOSFET transistor

  • G3R60MT07J
  • Housing type TO-263-7
  • Continous current ID at Tc=25oC 44 A
  • Continous current ID at Tc=100oC 31 A
  • RDS(ON) for VGS = 18 V -
  • RDS(ON) for VGS = 15 V 60 mΩ
  • Voltage UDS 750 V

The "G3R60MT07J" SiC MOSFET transistor is made using GeneSiC's patented Trench-Assisted Planar technology.

Features:

  • Low Temperature Coefficient of RDS(ON)
  • Lower QG and Smaller RG(INT)
  • Low Device Capacitances (COSS, CRSS)
  • LoRing – Electromagnetically Optimazed Design
  • Robust Body Diode with Low VF and Low QRR
  • 100% Avalanche (UIL) Tested

Applications:

  • Solar Inverters
  • EV/HEV Charging
  • Motor Drives
  • High Voltage DC-DC Converters
  • Switched Mode Power Supplies
  • UPS
  • Smart Grid Transmission and Distribution
  • Induction Heating and Welding
Less
