Manufacturer: Bel Power Solutions

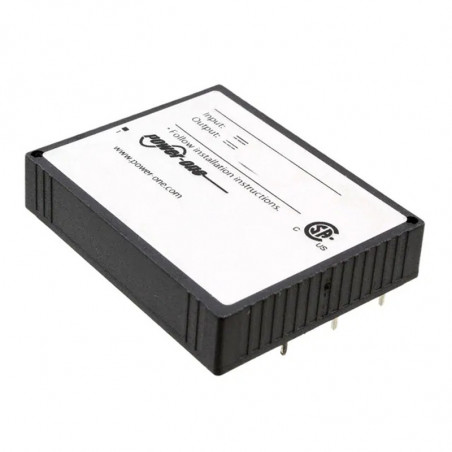

Type IMX15, IMY15


Impulse converters with stabilised output voltage

Technical data
Output power: 15W
Wide range of input voltage: up to 150VDC
one or two outputs
Possible to program output with logic signal.
Galvanic insulation 1.5kVDC 20/40 IMX 15 4kVDC 110 IMY 15
Output protected against short circuit
operation temperature range  -40 - 71°C
High efficiency up to 85%
Terminals For THT and SMD

Output voltage  1
UN
[VDC]
Output current 1
IN
[mA]
Output voltage 2
UN
[VDC]
Output current 2
IN
[mA]
Input voltage range
[VDC]
Type
3,3 4500 - - 8.4...36 20 IMX 15-03-9RG
3,3 4500 - - 16.8...75 40 IMX 15-03-9RG
3,3 4500 - - 50...150 110 IMY 15-03-9RG
5 3500 - - 8.4...36 20 IMX 15-05-9RG
5 3500 - - 16.8...75 40 IMX 15-05-9RG
5 3500 - - 50...150 110 IMY 15-05-8RG
5,1 2300 - - 8.4...36 20 IMX 15-05-9R
5,1 2300 - - 16.8...75 40 IMX 15-05-9R
5,1 2300 - - 50...150 110 IMY 15-05-8R
12 1300 - - 8.4...36 20 IMX 15-12-9C
12 1300 - - 16.8...75 40 IMX 15-12-9C
15 1000 - - 8.4...36 20 IMX 15-15-9C
15 1000 - - 16.8...75 40 IMX 15-15-9C
5,1 1350 5,1 1350 8.4...36 20 IMX 15-0503-9R
5,1 1400 5,1 1400 16.8...75 40 IMX 15-0503-9R
5,1 1400 5,1 1400 50...150 110 IMY 15-0503-8R
5 1300 5 1300 8.4...36 20 IMX 15-05-05-9
6,5 1400 5 1400 16.8...75 40 IMX 15-05-05-9
5 1400 5 1400 50...150 110 IMY 15-05-05-8
12 650 12 650 8.4...36 20 IMX 15-12-12-9
12 700 12 700 16.8...75 40 IMX 15-12-12-9
12 700 12 700 50...150 110 IMY 15-12-12-8
15 500 15 500 8.4...36 20 IMX 15-15-15-9
15 560 15 560 16.8...75 40 IMX 15-15-15-9
15 560 15 560 50...150 110 IMY 15-15-15-8
24 320 24 320 8.4...36 20 IMX 15-24-24-9
24 350 24 350 16.8...75 40 IMX 15-24-24-9
24 350 24 350 50...150 110 IMY 15-24-24-8

//
